BQ2004SN
Fast Charge Management NiCD/NiMH 16-Pin SOIC Tube
廠商型號:
BQ2004SN
芯天下內部編號:
136-BQ2004SN
生產廠商:
texas instruments
描述:

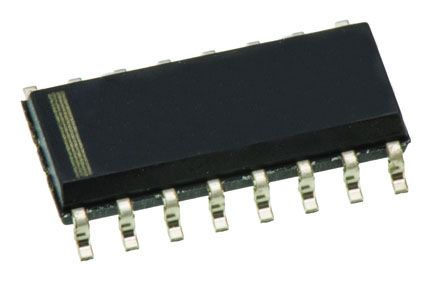

Fast Charge Management NiCD/NiMH 16-Pin SOIC Tube
產品類別:
Power Management|Battery Management
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 16SOIC |
| Type | Fast Charge Management |
| Battery Type | NiCD|NiMH |
| Operating Supply Voltage | 5 V |
| Operating Temperature | -20 to 70 °C |
| Mounting | Surface Mount |
| Standard Package | Rail / Tube |
| Typical Operating Supply Voltage | 5 |
| Standard Package Name | SOIC |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Package Height | 1.5(Max) |
| Packaging | Tube |
| PCB | 16 |
| Minimum Operating Supply Voltage | 4.5 |
| Maximum Operating Supply Voltage | 5.5 |
| Package Width | 4(Max) |
| Screening Level | Commercial |
| Supplier Package | SOIC |
| Package Length | 10(Max) |
| Minimum Operating Temperature | -20 |
| Pin Count | 16 |
| Lead Shape | Gull-wing |
| Function | Charge Management |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC N |
| Battery Chemistry | NiCd, NiMH |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Other Names | 296-9337-5 |
| rohs | Lead free / RoHS Compliant |
| Mounting Style | SMD/SMT |
| Product Category | Battery Management |
| Operating Supply Current | 3 mA |
| Series | BQ2004 |
| Unit Weight | 0.004998 oz |
| Charge Safety Timers | Yes |
| RoHS | RoHS Compliant |
| Minimum Operating Temperature | - 20 C |
| Factory Pack Quantity | 40 |
| Product Type | Charge Management |
| Maximum Operating Temperature | + 70 C |
| Temperature Monitoring | Yes |
| Operating Temp Range | -20C to 70C |
| Package Type | SOIC |
| Operating Temperature Classification | Commercial |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 5 V |
| Operating Supply Voltage (Min) | 4.5 V |
| Operating Supply Voltage (Max) | 5.5 V |
| Input Voltage | :5.5V |
| Battery Charge Voltage | :5.5V |
| Charge Current Max | :2A |
| Battery IC Case Style | :SOIC |
| No. of Pins | :16 |
| Operating Temperature Min | :-20°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :2004 |
| Battery Management Function | :Charger, Status Monitor |
| IC Generic Number | :2004 |
| IC Temperature Range | :Commercial |
| Operating Temperature Range | :-20°C to +70°C |
| Output Current Max | :5mA |
| Output Voltage | :4.5V |
| Power Supply IC Type | :Battery charger |
| Supply Voltage Min | :4.5V |
| Termination Type | :SMD |
| Weight (kg) | 0.0006 |
| Tariff No. | 85235290 |
| Supply Voltage | :7V |
| Status | ACTIVE |
| Temp (oC) | -20 to 70 |
| Package | Pins | SOIC?(D) | 16 |
| Device Marking | View |
| Package QTY | Carrier | 40 | TUBE |
| Control Interface | |
| New Flag | |
| Functional Diagram | |
| Vin | 5.5 |
| Cell Chemistry | NiCd NiMH |
| # Series Cells | |
| Datasheet | SLUS063B |
| Charge Current | >2 |
| Reference Design | |
| Charging Control Topology | |
| Special Features | Standard BAT Temp Monitoring |
| HiRel | |
| TI Design |
