BTB16-600CWRG
Triacs 16 Amp 600 Volt
廠商型號:
BTB16-600CWRG
芯天下內部編號:
390-BTB16-600CWRG
生產廠商:
STMicroelectronics
描述:
Triacs 16 Amp 600 Volt
產品類別:
Semiconductors|Discrete Semiconductors|TRIACs

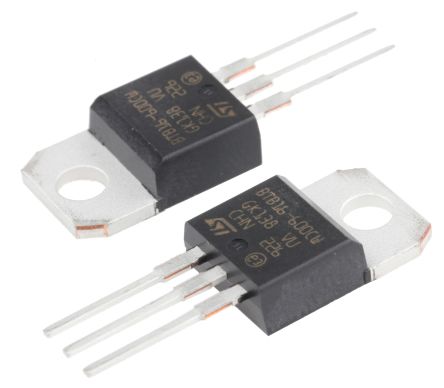

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Supplier Package | TO-220AB |
| Standard Package Name | TO-220 |
| Repetitive Peak Reverse Voltage | 600 |
| Maximum Operating Temperature | 125 |
| Maximum Gate Trigger Current | 35 |
| Maximum Holding Current | 35 |
| Repetitive Peak Off-State Current | 0.005 |
| Surge Current Rating | 168 |
| Maximum Gate Trigger Voltage | 1.3 |
| Repetitive Peak Forward Blocking Voltage | 600 |
| Packaging | Tube |
| EU RoHS | Compliant |
| Peak On-State Voltage | 1.55@22.5A |
| Minimum Operating Temperature | -40 |
| Operating Junction Temperature | -40 to 125 |
| Type | TRIAC |
| Pin Count | 3 |
| Lead Shape | Through Hole |
| Matchcode | BTB16-600CW |
| I(TRMS)eff | 16A |
| Package | TO220 |
| Unit Pack | 50 |
| Standard Leadtime | 14 weeks |
| MOQ | 50 |
| I(GT)max | 35mA |
| Leadfree Defin. | RoHS-conform |
| Tab voltage | NONINSULAT |
| U(RRM) | 600V |
| Automotive | NO |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 10.4 x 4.6 x 9.3mm |
| Height | 9.3mm |
| Length | 10.4mm |
| Maximum Gate Trigger Current | 35mA |
| Maximum Gate Trigger Voltage | 1.3V |
| Maximum Holding Current | 35mA |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Package Type | TO-220AB |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Repetitive Peak Off-State Current | 0.005mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 168A |
| Width | 4.6mm |
| Factory Pack Quantity | 50 |
| Product Category | Triacs |
| Rated Repetitive Off-State Voltage VDRM | 600 V |
| Gate Trigger Current | 35 mA |
| Off-State Leakage Current @ VDRM IDRM | 5 uA |
| Holding Current (Ih Max) | 35 mA |
| Series | BTB16 |
| Mounting Style | Through Hole |
| Non Repetitive On-State Current | 168 A |
| Package / Case | TO-220AB |
| On-State Voltage | 1.55 V |
| RoHS | RoHS Compliant |
| Breakover Current IBO Max | 168 A |
| Gate Trigger Current (Max) | 35 mA |
| Gate Trigger Voltage (Max) | 1.3 V |
| Mounting | Through Hole |
| Operating Temp Range | -40C to 125C |
| Peak Surge on-state current (Max) | 168 A |
| Peak Repeat Off Current | 0.005 |
| Repetitive Peak off-state volt | 600 V |
| Off-State Voltage | 600 V |
| Operating Temperature Classification | Automotive |
| On State Voltage(max) | 1.55@22.5A V |
| Hold Current | 35 mA |
| Rad Hardened | No |
| Gate Trigger Voltage | 1.3 V |
| Peak Repetitive Off-State Voltage, Vdrm | :600V |
| On State RMS Current IT(rms) | :16A |
| Peak Non Rep Surge Current Itsm 50Hz | :160A |
| Gate Trigger Voltage Max Vgt | :1.3V |
| Peak Gate Power | :1W |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Current Itsm | :160A |
| Current Itsm @ 60Hz | :168A |
| Gate Trigger Current Igt (Q1) t2+g+ | :35mA |
| Gate Trigger Current Max, Igt | :35mA |
| Holding Current Max Ih | :35mA |
| Operating Temperature Range | :-40°C to +125°C |
| Repetitive Reverse Voltage Vrrm Max | :600V |
| Thyristor Type | :Triac |
| Weight (kg) | 0.002 |
| Tariff No. | 85413000 |
| Case | TO220AB |
| Gate current | 35mA |
| Gross weight | 2.85 g |
| Load current max | 16A |
| Type of semiconductor component | triac |
| Multiplicity | 1 |
| Slew rate | 500V/μs |
| Off state voltage max | 600V |
| Collective package [pcs] | 200 |
| spg | 200 |
