C320C224K5R5TA
Cap Ceramic 0.22uF 50V X7R 10% Radial 2.54mm 125°C Bulk
廠商型號:
C320C224K5R5TA
芯天下內部編號:
196-C320C224K5R5TA
生產廠商:
kemet
描述:
Cap Ceramic 0.22uF 50V X7R 10% Radial 2.54mm 125°C Bulk
產品類別:
Capacitor|Capacitor Ceramic Multilayer
客戶編號:
規格書:
查看PDF

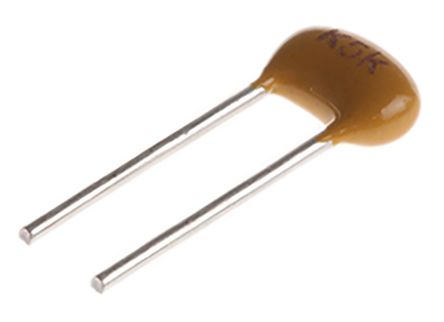

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package/Case | 5.08(Max) X 3.18(Max) X 6.6(Max) |
| Mounting | Through Hole |
| Capacitance Value | 0.22 uF |
| Voltage | 50 Vdc |
| Tolerance | 10 % |
| Dielectric | X7R |
| Lead Pitch For Radial | 2.54 mm |
| Operating Temperature | -55 to 125 °C |
| Termination Style | Radial |
| Product Length | 5.08(Max) mm |
| Product Height | 6.6(Max) mm |
| Product Depth | 3.18(Max) mm |
| Standard Package | Bulk |
| Product Category | Multilayer Ceramic Capacitors MLCC - Leaded |
| RoHS | RoHS Compliant By Exemption |
| Capacitance | 0.22 uF |
| Voltage Rating | 50 V |
| Operating Temperature Range | - 55 C to + 125 C |
| Temperature Coefficient / Code | X7R |
| Lead Spacing | 2.54 mm |
| Product | Conformally Coated MLCCs |
| Lead Style | Straight |
| Case Height | 3.18 mm |
| Case Length | 6.6 mm |
| Case Width | 5.08 mm |
| Dimensions | 5.08 mm W x 6.6 mm L x 3.18 mm H |
| Dissipation Factor DF | 2.5 |
| Lead Diameter | 0.51 mm |
| Packaging | Bulk |
| Series | C320 |
| Factory Pack Quantity | 2500 |
| Product Length | 5.08(Max) |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 125 |
| Product Depth | 3.18(Max) |
| Product Height | 6.6(Max) |
| Case Style | Dipped |
| Technology | Standard |
| Wire Form | Straight |
| Mounting Type | Through Hole |
| Voltage - Rated | 50V |
| Temperature Coefficient | X7R |
| Height - Seated (Max) | 0.260" (6.60mm) |
| Size / Dimension | 0.200" L x 0.125" W (5.08mm x 3.18mm) |
| Applications | General Purpose |
| Other Names | 399-4288 |
| rohs | Lead free / RoHS Compliant |
| Type | GOLDEN MAX Conformal Coated Multilayer Ceramic Capacitors |
| Operating Temp Range | -55C to 125C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Construction | Radial |
| Tolerance (+ or -) | 10% |
| Temp Coeff (Dielectric) | X7R |
| Mounting Style | Through Hole |
| Package / Case | Not Required |
| Product Length (mm) | 5.08(Max) mm |
| Product Depth (mm) | 3.18 mm |
| Product Height (mm) | 6.6 mm |
| Product Diameter (mm) | Not Required mm |
| Standard Pack: | 1 |
| Product Range | :KEMET - C320 Series |
| Capacitance Tolerance | :± 10% |
| Dielectric Characteristic | :X7R |
| Capacitor Terminals | :Radial Leaded |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :125°C |
| SVHC | :No SVHC (20-Jun-2013) |
| External Depth | :3.81mm |
| External Length / Height | :6.6mm |
| External Width | :0.125mm |
| No. of Pins | :2 |
| Weight (kg) | 0.000139 |
| Tariff No. | 85322100 |
| DielectricCharacteristic | X7R |
| Material,Element | Ceramic |
| Termination | Radial |
| Voltage,Rating | 50VDC |
