CA3140AMZ96
OP Amp Single GP ±18V/36V 8-Pin SOIC N T/R
廠商型號:
CA3140AMZ96
芯天下內部編號:
177-CA3140AMZ96
生產廠商:
intersil
描述:
OP Amp Single GP ±18V/36V 8-Pin SOIC N T/R
產品類別:
Amplifiers|OP Amp

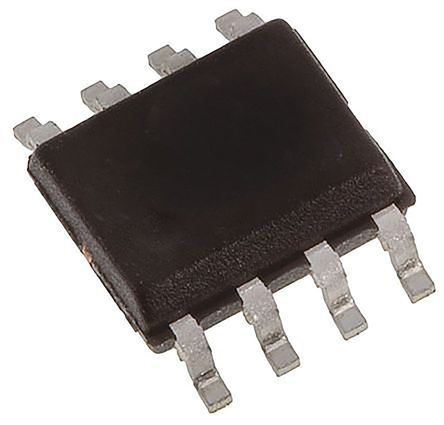

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8SOIC N |
| Number of Channels per Chip | 1 |
| Type | General Purpose Amplifier |
| Typical Gain Bandwidth Product | 3.7 MHz |
| Typical Slew Rate | 7@5V V/us |
| Maximum Supply Current | 1.6(Typ)@5V mA |
| Maximum Input Offset Voltage | 2(Typ)@5V mV |
| Maximum Input Bias Current | 0.000002(Typ)@5V uA |
| Typical Input Noise Voltage Density | 40@±15V nV/rtHz |
| Minimum CMRR | 90(Typ) dB |
| Minimum Single Supply Voltage | 4 V |
| Maximum Single Supply Voltage | 36 V |
| Minimum Dual Supply Voltage | ±2 V |
| Maximum Dual Supply Voltage | ±18 V |
| Mounting | Surface Mount |
| Operating Temperature | -55 to 125 °C |
| Typical Voltage Gain | 100 dB |
| Standard Package | Tape & Reel |
| Unit Pack | 2500 |
| MOQ | 2500 |
| Current - Output / Channel | 40mA |
| Amplifier Type | General Purpose |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Packaging | Tape & Reel (TR) |
| Current - Supply | 4mA |
| Voltage - Supply, Single/Dual (±) | 4 V ~ 36 V, ±2 V ~ 18 V |
| Slew Rate | 9 V/μs |
| Current - Input Bias | 10pA |
| Voltage - Input Offset | 2mV |
| Number of Circuits | 1 |
| Gain Bandwidth Product | 4.5MHz |
| Package/Case | 8-SOIC (0.154", 3.90mm Width) |
| rohs | Lead free / RoHS Compliant |
| Other Names | CA3140AMZ96CT |
| Operating Supply Voltage | 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V |
| Technology | BiCMOS |
| Common Mode Rejection Ratio - Min | 90 dB |
| Input Offset Voltage | 2 mV |
| Number of Channels | 1 Channel |
| Shutdown | No Shutdown |
| Minimum Operating Temperature | - 55 C |
| Package / Case | SOIC-8 Narrow |
| Maximum Operating Temperature | + 125 C |
| Supply Current | 1.6 mA |
| RoHS | RoHS Compliant |
| Input Bias Current - Max | 0.000002 uA |
| 供應商器件封裝 | 8-SOIC |
| 電壓 - 電源，單/雙 (±) | 4 V ~ 36 V, ±2 V ~ 18 V |
| 操作溫度 | -50°C ~ 125°C |
| 電路數量 | 1 |
| 電流 - 輸入偏置 | 10pA |
| 壓擺率 | 9 V/μs |
| 電壓 - 輸入失調 | 2mV |
| 封裝/外殼 | 8-SOIC (0.154", 3.90mm Width) |
| 電流 - 輸出/通道 | 40mA |
| 增益帶寬 | 4.5MHz |
| 放大器類型 | General Purpose |
| 電流 - 電源 | 4MA |
| 典型雙電源電壓 | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V |
| Board Level Components | Y |
| 典型電壓增益 | 100 dB |
| 典型增益帶寬積 | 3.7MHz |
| 典型單電源電壓 | 5 → 28 V |
| 典型轉換速率 | 7V/μs |
| 安裝類型 | 表面貼裝 |
| 電源類型 | 雙，單 |
| 最低工作溫度 | -55 °C |
| 高度 | 1.5mm |
| 最高工作溫度 | +125 °C |
| 寬度 | 4mm |
| 尺寸 | 5 x 4 x 1.5mm |
| 引腳數目 | 8 |
| 長度 | 5mm |
| 每片芯片通道數目 | 1 |
| 輸出類型 | CMOS |
| 封裝類型 | SOIC |
| 典型輸入電壓噪聲密度 | 40nV/√Hz |
| Supply Type | Single, Dual |
| Factory Pack Quantity | 2500 |
| Dual Supply Voltage | +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V |
| Operating Supply Current | 1.6 mA |
| Ib - Input Bias Current | 245 pA |
| PSRR - Power Supply Rejection Ratio | 80 dB |
| Product | Operational Amplifiers |
| GBP - Gain Bandwidth Product | 3.7 MHz |
| Brand | Intersil |
| SR - Slew Rate | 7 V/us |
| en - Input Voltage Noise Density | 40 nV/sqrt Hz |
| Length | 5 mm (Max) |
| Supply Voltage - Max | 36 V |
| Supply Voltage - Min | 4 V |
| Voltage Gain dB | 100 dB |
| Vos - Input Offset Voltage | 2 mV |
| Series | CA3140A |
| Height | 1.5 mm (Max) |
| Mounting Style | SMD/SMT |
