CD74HCT02M

NOR Gate 4-Element 2-IN CMOS 14-Pin SOIC Tube

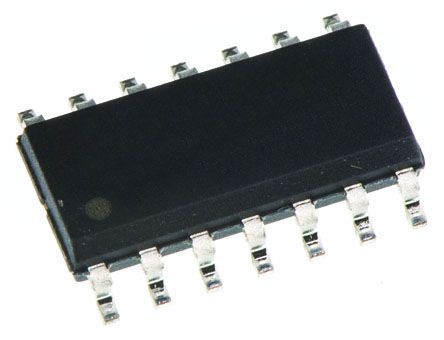

Thumbnail CD74HCT02M Thumbnail CD74HCT02M Thumbnail CD74HCT02M Thumbnail CD74HCT02M Thumbnail CD74HCT02M Thumbnail CD74HCT02M Thumbnail CD74HCT02M Thumbnail CD74HCT02M
廠商型號: CD74HCT02M
芯天下內部編號: 136-CD74HCT02M
生產廠商:
texas instruments texas instruments
描述: NOR Gate 4-Element 2-IN CMOS 14-Pin SOIC Tube
產品類別: Logic and Timing|Logic ICs|Gates
客戶編號:
規格書: 查看PDF
瀏覽次數: 4

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Package 14SOIC
Logic Function NOR
Number of Selection Inputs per Element 0
Minimum Operating Supply Voltage 4.5 V
Maximum Operating Supply Voltage 5.5 V
Maximum Propagation Delay Time @ Maximum CL 21@4.5V ns
Operating Temperature -55 to 125 °C
Standard Package Bulk
Standard Package Rail / Tube
Fabrication Technology CMOS
Mounting Surface Mount
Logic Family HCT
Package Width 4(Max)
PCB 14
Screening Level Military
Number of Element Outputs 1
Typical Operating Supply Voltage 5
EU RoHS Compliant
Maximum Quiescent Current 2
Number of Elements per Chip 4
Minimum Operating Temperature -55
Supplier Package SOIC
Standard Package Name SOIC
Maximum Operating Temperature 125
Number of Element Inputs 2-IN
Maximum High Level Output Current -4
Package Length 8.75(Max)
Minimum Operating Supply Voltage 4.5
Pin Count 14
Package Height 1.5(Max)
Maximum Low Level Output Current 4
Packaging Tube
Maximum Operating Supply Voltage 5.5
Lead Shape Gull-wing
Number of Inputs 2
Mounting Type Surface Mount
Current - Output High, Low 4mA, 4mA
Logic Type NOR Gate
Current - Quiescent (Max) 2μA
Supplier Device Package 14-SOIC
Voltage - Supply 4.5 V ~ 5.5 V
Max Propagation Delay @ V, Max CL 21ns @ 4.5V, 50pF
Logic Level - High 2V
Logic Level - Low 0.8V
Number of Circuits 4
Other Names 296-12825-5
Package/Case 14-SOIC (0.154", 3.90mm Width)
rohs Lead free / RoHS Compliant
Dimensions 8.65 x 3.91 x 1.58mm
Height 1.58mm
Length 8.65mm
Maximum High Level Output Current -4mA
Maximum Low Level Output Current 4mA
Maximum Operating Temperature +125 °C
Minimum Operating Temperature -55 °C
Number of Elements 4
Package Type SOIC
Propagation Delay Test Condition 50pF
Width 3.91mm
Factory Pack Quantity 50
Number of Gates 4
Package / Case SOIC-14
Product NOR
Product Category Logic Gates
High Level Output Current - 4 mA
Unit Weight 0.004564 oz
Propagation Delay Time 7 ns
Number of Output Lines 1
Operating Temperature Range - 55 C to + 125 C
Low Level Output Current 4 mA
Number of Lines In/Out 2 / 1
Supply Voltage - Max 5.5 V
Supply Voltage - Min 4.5 V
RoHS RoHS Compliant
Output Current 20 mA
Number of Input Lines 2
Series CD74HCT02
Mounting Style SMD/SMT
Technology CMOS
Logical Function NOR
Operating Temp Range -55C to 125C
Quiescent Current 2 uA
Number of Elements 4
Operating Temperature Classification Military
Number of Outputs 1
Rad Hardened No
Operating Supply Voltage (Typ) 5 V
Operating Supply Voltage (Min) 4.5 V
Operating Supply Voltage (Max) 5.5 V
No. of Inputs :2
Supply Voltage Min :4.5V
Supply Voltage Max :5.5V
Logic Case Style :SOIC
No. of Pins :14
Operating Temperature Min :-55°C
Operating Temperature Max :125°C
MSL :MSL 1 - Unlimited
SVHC :No SVHC (20-Jun-2013)
Base Number :74
IC Generic Number :74HCT02
Logic Function Number :7402
Logic IC Base Number :7402
Logic IC Family :HCT
Logic IC Function :Quadruple 2-Input Positive NOR Gate
No. of Gates :4
Output Current Max :25mA
Supply Voltage Range :4.5V to 5.5V
Termination Type :SMD
Weight (kg) 0.000269
Tariff No. 85423990
Status ACTIVE
Temp (oC) -55 to 125
Package | Pins SOIC?(D) | 14
Device Marking View
Package QTY | Carrier 50 | TUBE
Functional Diagram
Technology Family HCT
tpd @ Nom Voltage 26
Input Type TTL
Bits 4
HiRel
Package Group PDIP SOIC
Output Type CMOS
Reference Design
VCC 5.5
Datasheet SCHS125C
F @ Nom Voltage 25
ICC @ Nom Voltage 0.02
Rating Catalog
Output Drive (IOL/IOH) 4/-4
TI Design
Voltage 5
