CDCVF25081PW
2.5V TO 3.3V PH. LOCK LOOP CLOCK DRIVER
廠商型號:
CDCVF25081PW
芯天下內部編號:
136-CDCVF25081PW
生產廠商:
texas instruments
描述:
2.5V TO 3.3V PH. LOCK LOOP CLOCK DRIVER
產品類別:
Logic and Timing|Logic ICs|Clock and Timing Misc

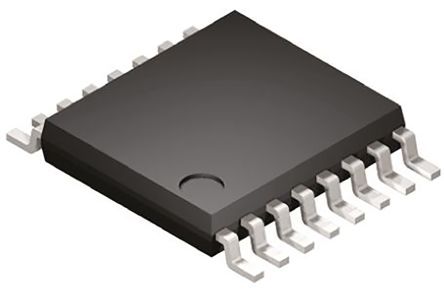

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 16TSSOP |
| Type | Zero Delay PLL Clock Driver |
| Family | CDCVF25081 |
| Number of Elements per Chip | 1 |
| Operating Temperature | -40 to 85 °C |
| Operating Supply Voltage | 3.3 V |
| Standard Package | Rail / Tube |
| Typical Operating Supply Voltage | 3.3 |
| Standard Package Name | TSSOP |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Minimum Operating Temperature | -40 |
| Package Height | 1.05(Max) |
| Mounting | Surface Mount |
| Packaging | Tube |
| PCB | 16 |
| Minimum Operating Supply Voltage | 3 |
| Package Width | 4.5(Max) |
| Screening Level | Industrial |
| Supplier Package | TSSOP |
| Package Length | 5.1(Max) |
| Maximum Operating Supply Voltage | 3.6 |
| Pin Count | 16 |
| Lead Shape | Gull-wing |
| Ratio - Input:Output | 2:8 |
| Mounting Type | Surface Mount |
| Differential - Input:Output | No/No |
| Input | LVTTL |
| Supplier Device Package | 16-TSSOP |
| Divider/Multiplier | No/No |
| Frequency - Max | 200MHz |
| Voltage - Supply | 3 V ~ 3.6 V |
| Output | LVTTL |
| PLL | Yes with Bypass |
| Number of Circuits | 1 |
| Other Names | 296-12271-5 |
| Package/Case | 16-TSSOP (0.173", 4.40mm Width) |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 5 x 4.4 x 1.15mm |
| Height | 1.15mm |
| Length | 5mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Operating Temperature | +85 °C |
| Maximum Output Frequency | 200MHz |
| Minimum Operating Supply Voltage | 3 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Frequency | 8MHz |
| Package Type | TSSOP |
| Width | 4.4mm |
| Factory Pack Quantity | 90 |
| Product Category | Clock Drivers & Distribution |
| Input Type | Clock |
| Series | CDCVF25081 |
| Multiply / Divide Factor | 1:8 |
| Unit Weight | 0.002183 oz |
| Mounting Style | SMD/SMT |
| Supply Voltage - Max | 3.6 V |
| Max Output Freq | 200 MHz |
| Package / Case | TSSOP-16 |
| Supply Current | 5 uA |
| Supply Voltage - Min | 3 V |
| RoHS | RoHS Compliant |
| Operating Temp Range | -40C to 85C |
| Number of Elements | 1 |
| Operating Temperature Classification | Industrial |
| Programmable | No |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 3.3 V |
| Operating Supply Voltage (Min) | 3 V |
| Operating Supply Voltage (Max) | 3.6 V |
| DELETED | Compliant |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | TSSOP?(PW) | 16 |
| Device Marking | View |
| Package QTY | Carrier | 90 | TUBE |
| Rating | Catalog |
| VCC | 3.3 |
| Functional Diagram | |
| Operating Temperature Range | -40 to 85 |
| tsk(o) | 150 |
| Absolute Jitter (Peak-to-Peak Cycle or Period Jitter) | |
| Package Group | SOIC TSSOP |
| Datasheet | SCAS671A |
| Operating Frequency Range | |
| Output Drive | |
| t(phase error) | 200 |
| Special Features | |
| No of Outputs | |
| 最低輸出頻率 | 8MHz |
| 最高工作溫度 | +85°C |
| 高度 | 1.15mm |
| 最大工作電源電壓 | 3.6 V |
| 安裝類型 | 表面貼裝 |
| 最低工作溫度 | -40°C |
| 最小工作電源電壓 | 3 V |
| 最高輸出頻率 | 200MHz |
| 寬度 | 4.4mm |
| 封裝類型 | TSSOP |
| 每片芯片元件數目 | 1 |
| 引腳數目 | 16 |
| 長度 | 5mm |
| 尺寸 | 5 x 4.4 x 1.15mm |
| Operating Supply Current | 5 uA |
| Brand | Texas Instruments |
