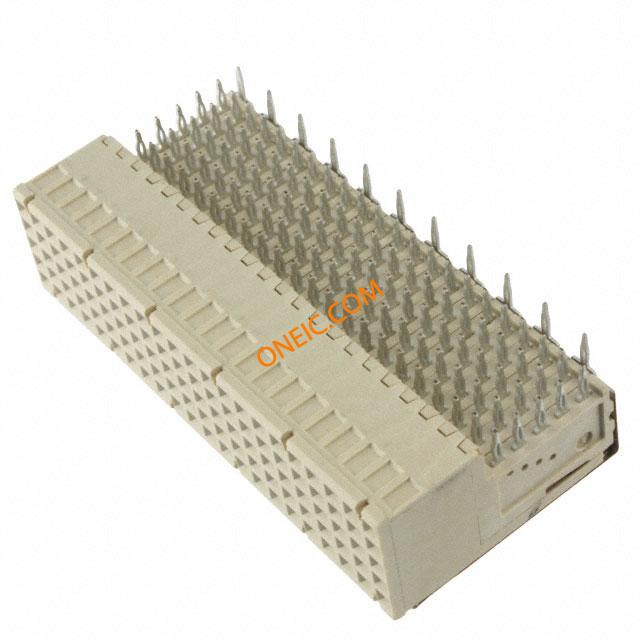

CP2-SB110-G1-FJ
COMPAK PCI - STD SIGNAL ROHS
廠商型號:
CP2-SB110-G1-FJ
芯天下內部編號:
504-CP2-SB110-G1-FJ
生產廠商:
3m interconnect solutions
描述:
COMPAK PCI - STD SIGNAL ROHS
產品類別:
Interconnect|Connector Accessories
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Connector Usage | CompactPCI |
| Features | Upper Shield |
| Mounting Type | Through Hole, Right Angle |
| Standard Package | 420 |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 5 |
| Pitch | 0.079" (2.00mm) |
| Termination | Press-Fit |
| Contact Finish Thickness | 10μin (0.25μm) |
| Connector Style | B 22 |
| Number of Positions | 110 |
| Number of Positions Loaded | All |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Mounting Angle | Right |
| Product Category | Hard Metric Connectors |
| Series | CP2 |
| Termination Style | Press In |
| Mounting Style | PCB |
| Number of Positions / Contacts | 110 |
| Contact Plating | Gold |
| Part # Aliases | 51119905618 80001203050 |
| Contact Material | Copper Alloy |
