CRCW02010000Z0ED
Res Thick Film 0201 0 Ohm Molded SMD SMD Paper T/R
廠商型號:
CRCW02010000Z0ED
芯天下內部編號:
5-CRCW02010000Z0ED
生產廠商:
vishay / dale
描述:
Res Thick Film 0201 0 Ohm Molded SMD SMD Paper T/R
產品類別:
Resistor|Resistor Fixed Single-Surface Mount

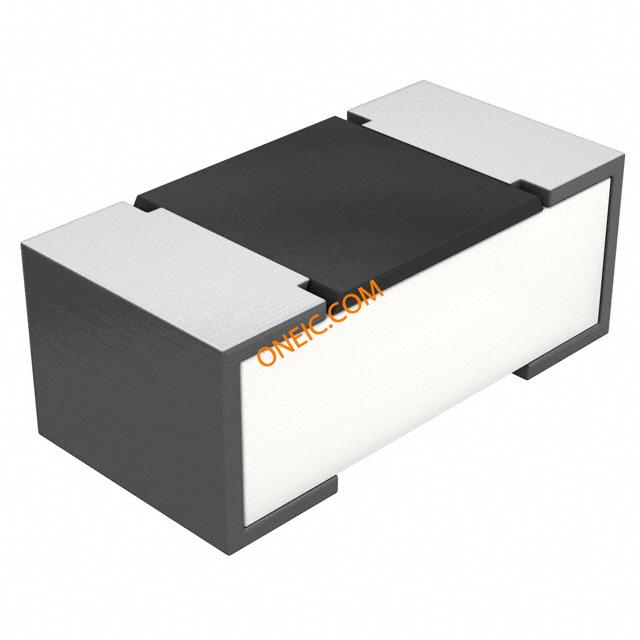

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Case Size | 0201 |
| Type | Thick Film |
| Resistance Value | 0 Ohm |
| Case Style | Molded |
| Operating Temperature | -55 to 155 °C |
| Lead Finish | Tin |
| Standard Package | Tape & Reel |
| Resistance Value | 0 |
| EU RoHS | Compliant |
| Product Depth | 0.3 |
| Mounting | Surface Mount |
| Current Sensing | No |
| Product Length | 0.6 |
| Product Height | 0.23 |
| Packaging | Paper Tape and Reel |
| Anti-Surge | No |
| Fail Safe Fusible Resistor | No |
| Technology | Thick Film |
| Package/Case | 0201 |
| Resistance (Ohms) | 0.0 |
| Number of Terminations | 2 |
| Supplier Device Package | 0201 (0603 Metric) |
| Height | 0.011" (0.28mm) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Power (Watts) | 0.05W, 1/20W |
| Package / Case | 0201 (0603 Metric) |
| Tolerance | Jumper |
| Composition | Thick Film |
| rohs | Lead free / RoHS Compliant |
| Other Names | 541-0.0AGCT |
| Factory Pack Quantity | 10000 |
| Product | Thick Film Resistors Zero-Ohm |
| Product Category | Thick Film Resistors |
| Series | CRCW |
| Case Code - mm | 0603 |
| Operating Temperature Range | - 55 C to + 155 C |
| Resistance | 0 Ohms |
| Unit Weight | 0.000006 oz |
| Case Length | 0.6 mm |
| Case Code - in | 0201 |
| Case Height | 0.23 mm |
| Case Width | 0.3 mm |
| RoHS | RoHS Compliant By Exemption |
| Operating Temp Range | -55C to 155C |
| Failure Rate | Not Required |
| Construction | Rectangular |
| Tolerance (+ or -) | Not Required |
| Power Rating(s) | Not Required W |
| Temperature Coefficient | Not Required ppm/?C |
| Product Length (mm) | 0.6 mm |
| Product Depth (mm) | 0.3 mm |
| Product Height (mm) | 0.23 mm |
| DELETED | Compliant |
| Termination Style | Not Required |
| Military Standard | Not Required |
| Product Range | :VISHAY - CRCW Series |
| Power Rating | :50mW |
| Resistance Tolerance | :- |
| Resistor Case Style | :0201 ^0603 Metric] |
| Resistor Element Type | :Thick Film |
| Weight (kg) | 0 |
| Tariff No. | 85332100 |
| Dimensions | 0.024x0.012x0.009"(0.6x0.3x0.23mm)LxWxH |
| Material,Element | ThickFilm |
| PackageType | 0201(0603mm) |
| Power,Rating | 0.05W |
| Termination | SMT |
