CS5173GDR8G
Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 2.7V to 30V 8-Pin SOIC N T/R
廠商型號:
CS5173GDR8G
芯天下內部編號:
277-CS5173GDR8G
生產廠商:
on semiconductor
描述:
Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 2.7V to 30V 8-Pin SOIC N T/R
產品類別:
Power Management|DC to DC Converter

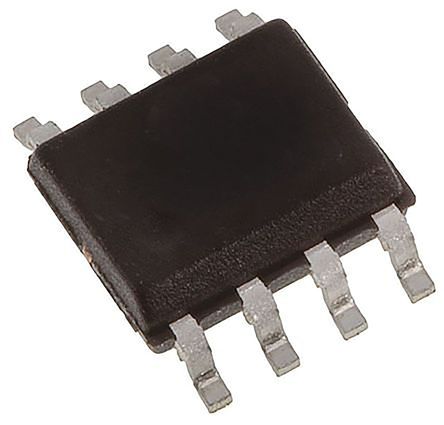

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8SOIC N |
| Type | Non-Inverting|Inverting|Step Up|Step Down |
| Number of Outputs | 1 |
| Maximum Output Current | 1.5 A |
| Operating Supply Voltage | 2.7 to 30 V |
| Minimum Input Voltage | 2.7 V |
| Maximum Input Voltage | 30 V |
| Line Regulation | 0.03 %/V |
| Switching Frequency | 620 kHz |
| Operating Temperature | 0 to 125 °C |
| Mounting | Surface Mount |
| Standard Package | Cut Tape |
| Standard Package | Tape & Reel |
| Switching Frequency | 620 |
| Package Width | 4(Max) |
| Minimum Input Voltage | 2.7 |
| PCB | 8 |
| Screening Level | Commercial |
| EU RoHS | Compliant |
| Switching Regulator | Yes |
| Minimum Operating Temperature | 0 |
| Supplier Package | SOIC N |
| Standard Package Name | SOIC |
| Maximum Operating Temperature | 125 |
| Package Length | 5(Max) |
| Pin Count | 8 |
| Package Height | 1.5(Max) |
| Packaging | Tape and Reel |
| Maximum Output Current | 1.5 |
| Maximum Input Voltage | 30 |
| Lead Shape | Gull-wing |
| Synchronous Rectifier | No |
| Mounting Type | Surface Mount |
| Frequency - Switching | 560kHz |
| Supplier Device Package | 8-SOIC N |
| Current - Output | 1.5A |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| PWM Type | Current Mode |
| Other Names | CS5173GDR8GOSTR |
| Voltage - Input | 2.7 V ~ 30 V |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 2500 |
| Product Category | Voltage Regulators - Switching Regulators |
| Mounting Style | SMD/SMT |
| RoHS | RoHS Compliant |
| 同步整流器 | No |
| PWM 類型 | Current Mode |
| 電流 - 輸出 | 1.5A |
| 操作溫度 | 0°C ~ 125°C |
| 裝配類型 | Surface Mount |
| 電壓 - 輸入 | 2.7 V ~ 30 V |
| 封裝/外殼 | 8-SOIC (0.154", 3.90mm Width) |
| 類型 | Step-Up (Boost), Flyback, Forward Converter, Sepic |
| 輸出數 | 1 |
| 頻率 - 開關 | 560kHz |
| 最大輸出電流 | 1.5A |
| 輸出數目 | 1 |
| Board Level Components | Y |
| 線路調節 | 0.03 %/V |
| 最高工作溫度 | +125 °C |
| 開關調節器 | 是 |
| 安裝類型 | 表面貼裝 |
| 封裝類型 | SOIC |
| 最低工作溫度 | 0 °C |
| 高度 | 1.5mm |
| 最高開關頻率 | 560 kHz |
| 寬度 | 4mm |
| 調節器功能 | 上升 |
| 最小輸入電壓 | 2.7 V |
| 引腳數目 | 8 |
| 長度 | 5mm |
| 尺寸 | 5 x 4 x 1.5mm |
| 最大輸入電壓 | 30 V |
| Input Voltage MAX | 30 V |
| Output Current | 1.5 A |
| Series | CS5173 |
| Brand | ON Semiconductor |
| Operating Temperature Range | 0 C to + 125 C |
| Operating Supply Current | 5.5 mA |
| Output Voltage | Adj |
| Shutdown | Shutdown |
| Minimum Operating Temperature | 0 C |
| Supply Voltage - Min | 2.7 V |
| Topology | Boost |
| Maximum Operating Temperature | + 125 C |
| Input Voltage | 2.7 V to 30 V |
| Input Voltage MIN | 2.7 V |
