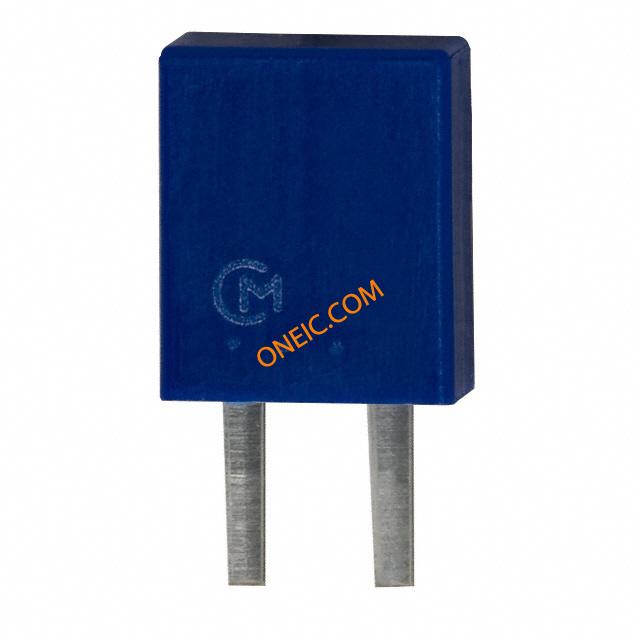

CSBLA1M00J58-B0
CER RESONATOR 1.00MHZ
廠商型號:
CSBLA1M00J58-B0
芯天下內部編號:
233-CSBLA1M00J58-B0
生產廠商:
murata electronics
描述:
CER RESONATOR 1.00MHZ
產品類別:
Logic and Timing|Crystals
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Frequency Stability | ±0.3% |
| Type | Ceramic Resonator |
| EU RoHS | Compliant |
| Frequency Tolerance | ±0.5% |
| Resonance Frequency | 1 |
| Package Height | 6 |
| Mounting | Through Hole |
| Packaging | Bulk |
| Frequency Aging | ±0.3%/Year |
| Package Width | 2.2 |
| Resonance Resistance | 100 |
| PCB | 2 |
| Package Length | 5 |
| Minimum Operating Temperature | -20 |
| Maximum Operating Temperature | 80 |
| Pin Count | 2 |
| Matchcode | RESB1000K2 |
| Washable | YESy/n |
| Unit Pack | 1000 |
| Standard Leadtime | 16 weeks |
| T(A)min | -20°C |
| Width | 7.5mm |
| Automotive | NO |
| Leadfree Defin. | RoHS-conform |
| T(A)max | 80°C |
| Level | TTL |
| Technics | CERAMIC |
| Pins/Pads | 2 |
| Tolerance neg | 0.5% |
| Pin length | 3.5mm |
| MOQ | 2000 |
| Height | 8.5mm |
| Frequency | 1MHz |
| Pitch | 2.5mm |
| Toler. pos % | 0.5% |
| Thick | 3.3mm |
| Subcategory | Resonator |
| Lead Time | 70 Days |
| Mounting Type | Through Hole |
| Size / Dimension | 0.197" L x 0.087" W (5.00mm x 2.20mm) |
| Capacitance | 100pF |
| Operating Temperature | -20°C ~ 80°C |
| Standard Package | 1,000 |
| Impedance | 100 Ohm |
| Package/Case | Radial, Box - 2 Lead, 2.50mm Pitch |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1000 |
| Product Category | Resonators |

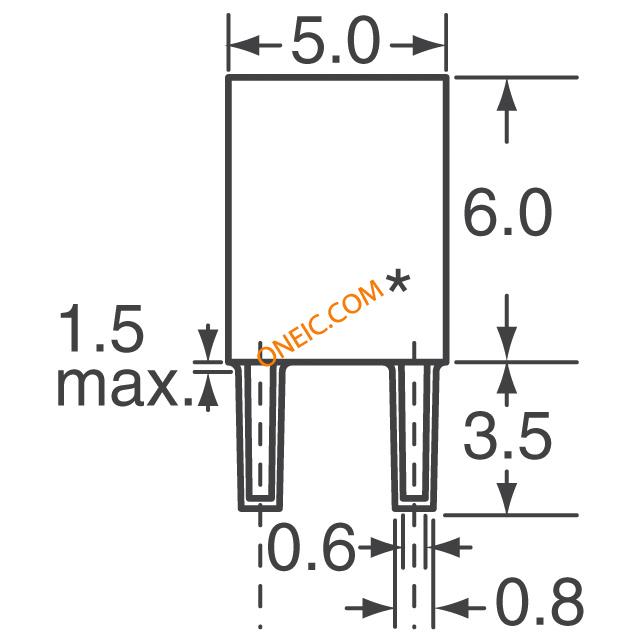

| Dimensions | 5 mm W x 6 mm L x 2.2 mm H |
| Operating Temperature Range | - 20 C to + 80 C |
| Series | CSBLA |
| Termination Style | Through Hole |
| Tolerance | 0.5 % |
| Tradename | CERALOCK |
| RoHS | RoHS Compliant By Exemption |
| Resonant Impedance | :100ohm |
| Oscillator Mounting | :Through Hole |
| No. of Pins | :2 |
| Operating Temperature Min | :-20°C |
| Operating Temperature Max | :80°C |
| SVHC | :No SVHC (20-Jun-2013) |
| Accuracy | :± 0.5% |
| Capacitance Tolerance | :± 0.5% |
| External Depth | :2.2mm |
| External Length / Height | :6mm |
| External Width | :5mm |
| Lead Length | :3.5mm |
| Lead Spacing | :2.5mm |
| Resonant Frequency | :1MHz |
| Resonator Case | :Radial Leaded |
| Terminal Type | :Radial Leaded |
| Tolerance + | :0.5% |
| Tolerance - | :0.5% |
| Voltage Rating | :6V |
| Weight (kg) | 0.0001 |
| Tariff No. | 85416000 |
