CSTCC2M00G53-R0
IC RESONATOR 2MHZ 15PF SMD T/R
廠商型號:
CSTCC2M00G53-R0
芯天下內部編號:
233-CSTCC2M00G53-R0
生產廠商:
murata electronics
描述:
IC RESONATOR 2MHZ 15PF SMD T/R
產品類別:
Logic and Timing|Crystals

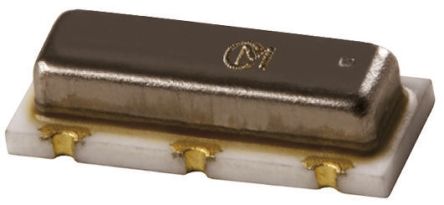

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Standard Frequency | 2 MHz |
| Frequency Tolerance | ±0.5 % |
| Load Capacitance | 15 pF |
| Type | Resonator |
| Maximum Operating Temperature | 80 °C |
| Minimum Operating Temperature | -20 °C |
| Standard Package | Tape & Reel |
| Matchcode | RESC2,00M3 |
| Leadfree Defin. | RoHS-conform |
| Washable | YESy/n |
| Unit Pack | 2000 |
| Standard Leadtime | 14 weeks |
| MOQ | 2000 |
| Level | TTL |
| T(A)min | -20°C |
| Height | 1.55mm |
| Packaging | REEL |
| Width | 7.2mm |
| Frequency | 2MHz |
| Technics | CERAMIC |
| Mounting | SMD |
| Automotive | NO |
| T(A)max | 80°C |
| Thick | 3mm |
| Pins/Pads | 3 |
| Loadcapacitance | 15pF |
| Tolerance neg | 0.5% |
| Toler. pos % | 0.5% |
| Industry Aliases | CSTCC2.00MG-TC |
| Subcategory | Resonator |
| Lead Time | 70 Days |
| Frequency Stability | ±0.3% |
| Features | Built in Capacitor |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.284" L x 0.118" W (7.20mm x 3.00mm) |
| Capacitance | 15pF |
| Operating Temperature | -20°C ~ 80°C |
| Package/Case | 3-SMD, Non-Standard |
| rohs | Lead free / RoHS Compliant |
| Other Names | 490-1193-1 |
| Factory Pack Quantity | 2000 |
| Product Category | Resonators |
| Dimensions | 3 mm W x 7.2 mm L x 1.55 mm H |
| Operating Temperature Range | - 20 C to + 80 C |
| Series | CSTCC |
| Termination Style | SMD/SMT |
| Tolerance | 0.5 % |
| Tradename | CERALOCK |
| RoHS | RoHS Compliant |
| DELETED | Compliant |
| Resonant Impedance | :80ohm |
| Oscillator Mounting | :SMD |
| No. of Pins | :3 |
| Operating Temperature Min | :-20°C |
| Operating Temperature Max | :80°C |
| SVHC | :Lead titanium zirconium oxide (20-Jun-2013) |
| Accuracy | :± 0.5% |
| Capacitance Tolerance | :± 0.5% |
| External Depth | :3mm |
| External Length / Height | :1.55mm |
| External Width | :7.2mm |
| Lead Spacing | :2.5mm |
| Resonant Frequency | :2MHz |
| Resonator Case | :SMD |
| Terminal Type | :Solder Pad |
| Tolerance + | :0.5% |
| Tolerance - | :0.5% |
| Voltage Rating | :6V |
| Weight (kg) | 0.0001 |
| Tariff No. | 85416000 |
