CWT-7-W122-5
Solder & Shield Tubing .275 O/D .145 S/D
廠商型號:
CWT-7-W122-5
芯天下內部編號:
35-CWT-7-W122-5
生產廠商:
TE Connectivity / Raychem
描述:
Solder & Shield Tubing .275 O/D .145 S/D
產品類別:
Wire & Cable|Wire Protection & Management|Solder & Shield Tubing

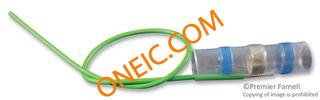

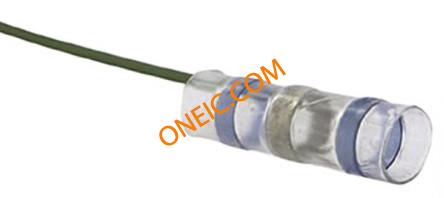

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Solder & Shield Tubing |
| RoHS | No |
| Type | Commercial Shield Terminator |
| Material | Polyolefin (PO) |
| Length | 32.5 mm |
| Minimum Shrink Temperature | + 85 C |
| Series | CWT |
| Chemical Resistant | Yes |
| Color | Clear |
| Features | Low temperature applications, controlled soldering, strain relief, insulation, easy installation |
| Maximum Temperature | + 125 C |
| Packaging | Bulk |
| Factory Pack Quantity | 100 |
| Part # Aliases | 764619-000 |
| Diameter | 0.236" (6.0mm), 0.264" (6.7mm) |
| Standard Package | 100 |
| rohs | RoHS non-compliant |
| Colour | Transparent |
| Dielectric Strength | 1kV |
| Maximum Cable Diameter | 7.3mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Sleeve Length | 32.5mm |
| Voltage Rating | 2.5 mV |
| Lead Free Solder Processes | No |
| Brand/Series | CWTSeries |
| Diameter,Inside | 0.27" |
| Diameter,Maximum | 0.275in.(Jacket) |
| Diameter,Outer,Cable | 7.30(0.287)mm(In.) |
| Diameter,Shield | 3.30(0.130)mm(In.) |
| DielectricStrength | 1kV(Immersed) |
| Material,Sleeve | Polyolefin |
| PrimaryType | SolderSleeve |
| ProtectionClass | Sleeve,Solder |
| Resistance,Insulation | 1000Megohms |
| SpecialFeatures | SplashResistant |
| Standards | ULListed |
| Temperature,Operating | -55to+125°C |
| TycoPartNumber | 764619-000 |
| VoltageDrop | 2.5mV |
| Lead Stranding | Stranded |
| Wire Temperature (Max)?(°C) | 85 |
| Pre-Installed Lead | Yes |
| 工作溫度（最大值）?(°C) | 125 |
| MIL/NAS Specification (MIL-S-83519, NAS-1747) | No |
| 屏蔽外徑（最小值） | 3.7?mm?[?.145?in?] |
| Resistance Properties | Splash Protection |
| 總長 | 32.5?mm?[?1.28?in?] |
| Lead Color | Green |
| Lead Plating Material | Tin |
| Pre-Installed Lead Wire Size?(mm2) | .38 |
| 符合政府資質 | 否 |
| 擴大內徑（最小值） | 6.8?mm?[?.27?in?] |
| 產品類型 | 屏蔽終結器 |
| Jacket Outside Diameter | 7?mm?[?.276?in?] |
| Temperature Indicator | No |
| Pre-Installed Lead Type | XL Polyethylene |
