D-436-38
Solder & Shield Tubing MINISEAL WIRE SPLICE
廠商型號:
D-436-38
芯天下內部編號:
35-D-436-38
生產廠商:
TE Connectivity / Raychem
描述:
Solder & Shield Tubing MINISEAL WIRE SPLICE
產品類別:
Wire & Cable|Wire Protection & Management|Solder & Shield Tubing
客戶編號:
規格書:
查看PDF

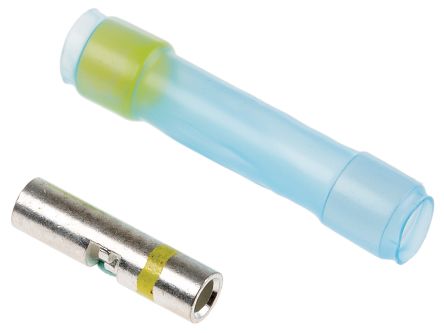

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Solder & Shield Tubing |
| RoHS | RoHS Compliant |
| Type | Splices |
| Material | Polyvinylidene Fluoride (PVDF) |
| Series | D-436 |
| Chemical Resistant | No |
| Color | Yellow |
| Packaging | Bulk |
| Factory Pack Quantity | 100 |
| Part # Aliases | 650076-000 |
| Wire Gauge | 12-16 AWG |
| Number of Wire Entries | 2 |
| Standard Package | 100 |
| Insulation | Fully Insulated Heat Shrink |
| Termination | Crimp |
| Terminal Type | Butt Splice, Inline, Individual Openings |
| rohs | Lead free / RoHS Compliant |
| Overall Length | 14.35mm |
| Connector Type | :Crimp Terminal |
| Insulator Colour | :Yellow |
| Termination Method | :Crimp |
| Stud/Tab Size | :- |
| Wire Size AWG Min | :16AWG |
| Wire Size AWG Max | :12AWG |
| Contact Material | :Copper |
| Contact Plating | :Tin |
| Insulator Material | :PVDF (Polyvinylidene Fluoride) |
| Wire Size (AWG) | :16AWG to 12AWG |
| Weight (kg) | 0.00068 |
| Tariff No. | 85444920 |
