D2F-FL2
Basic / Snap Action Switches Subminiature Basic Switch
廠商型號:
D2F-FL2
芯天下內部編號:
232-D2F-FL2
生產廠商:
Omron Electronics
描述:
Basic / Snap Action Switches Subminiature Basic Switch
產品類別:
Switches|Snap Action, Limit Switches|D2F
客戶編號:
規格書:
查看PDF

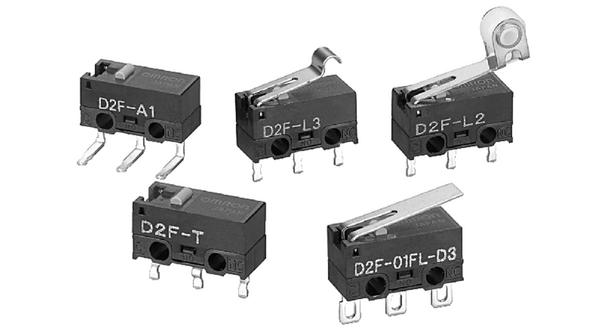

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Industry Aliases | D2F-FL2 |
| Subcategory | Switch Snap Action |
| Lead Time | 96 Days |
| Current Rating | 1A (AC), 500mA (DC) |
| Operating Force, Torque | 40gf |
| Voltage Rating - AC | 125V |
| Electrical Life | 30,000 Cycles |
| Termination Style | PC Pin |
| Operating Temperature | -25°C ~ 65°C |
| Mechanical Life | 1,000,000 Cycles |
| Differential Travel | 0.020" (0.5mm) |
| Overtravel | 0.022" (0.55mm) |
| Standard Package | 150 |
| Switch Function | On-Mom |
| Operating Position | 0.650" (16.5mm) |
| Circuit | SPDT |
| Voltage Rating - DC | 30V |
| Ingress Protection | IP40 |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Actuator Type | Lever, Roller |
| Release Force | 2gf |
| Other Names | D2FFL2 |
| rohs | Lead free / RoHS Compliant |
| CAD Drawing | 3D CAD Model |
| Contact Configuration | SPDT-NO/NC |
| Contact Current Rating | 1 A @ 125 V ac |
| Contact Material | Silver Alloy |
| IP Rating | IP40 |
| Maximum Operating Temperature | +65°C |
| Minimum Operating Temperature | -25°C |
| Operating Force | 0.39 N |
| Terminal Type | PCB |
| SubCategory | Snap-Action Switch |
| MainCategory | Switches |
| Contacts | 1 change-over (CO) |
| Rated current | 1 A |
| Actuation | Roller lever |
| Actuation force | 0.74 N |
| Termination type | PCB Connection |
| Rated voltage | 125 |
| Temperature range | -25...+85 °C |
| Protection rating | IP 40 |
| Contact material | Ag |
| 最低工作溫度 | -25°C |
| IP 防護等級 | IP40 |
| 最高工作溫度 | +65°C |
| 操作力 | 0.39 N |
| 執行器類型 | 滾輪杠桿 |
| 觸點配置 | 單刀雙擲 - 常開/常閉 |
| 工作溫度范圍 | -25 → +65°C |
| CAD 繪圖 | 3D CAD 模型 |
| 觸點材料 | 銀合金 |
| 機械壽命 | 1000000Operations |
| 釋放力 | 0.02N |
| 觸點額定電流 | 1 A @ 125 V 交流 |
| 接端類型 | PCB |
