D2TO020C10R00FTE3
Thick Film Resistors - SMD 20W 10ohm 1%
廠商型號:
D2TO020C10R00FTE3
芯天下內部編號:
5-D2TO020C10R00FTE3
生產廠商:
Vishay / Sfernice
描述:
Thick Film Resistors - SMD 20W 10ohm 1%
產品類別:
Passive Components|Resistors|Film Resistors|Thick Film Resistors - SMD

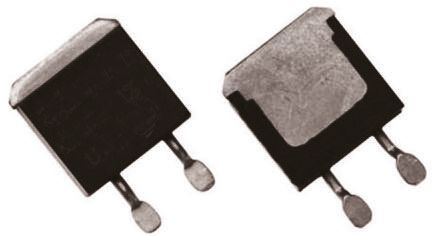

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| RoHS | RoHS Compliant By Exemption |
| Resistance | 10 Ohms |
| Tolerance | 1 % |
| Power Rating | 20 W |
| Voltage Rating | 250 V |
| Temperature Coefficient | 150 PPM / C |
| Series | D2TO20 |
| Operating Temperature Range | - 55 C to + 155 C |
| Packaging | Tube |
| Dimensions | 8.8 mm W x 10.1 mm L x 4.5 mm H |
| Package / Case | TO-263 (D2PAK) |
| Product | Thick Film Resistors SMD |
| Factory Pack Quantity | 50 |
| Termination Style | SMD/SMT |
| Life | New At Mouser |
| Unit Pack | 50 |
| MOQ | 50 |
| Resistance (Ohms) | 10 |
| Features | Automotive AEC-Q200 Qualified, Non-Inductive |
| Number of Terminations | 2 |
| Standard Package | 50 |
| Supplier Device Package | TO-263 (D2Pak) |
| Height | 0.189" (4.80mm) |
| Size / Dimension | 0.398" L x 0.346" W (10.10mm x 8.80mm) |
| Power (Watts) | 20W |
| Composition | Thick Film |
| rohs | Lead free / RoHS Compliant |
| Case Style | Moulded |
| Depth | 4.5mm |
| Length | 10.5mm |
| Maximum Operating Temperature | +155°C |
| Maximum Temperature Coefficient | +150ppm/°C |
| Minimum Operating Temperature | -55°C |
| Minimum Temperature Coefficient | -150ppm/°C |
| Package/Case | TO-263 |
| Technology | Thick Film |
| Case Length | 10.1 mm |
| Case Height | 4.5 mm |
| Type | Surface Mounted Power Resistor Thick Film Technology |
| Case Width | 8.8 mm |
| Output max with heat sink | 20 W |
| Rated output | 20 W |
| Resistor type | Thick film |
| Temperature coefficient | ±150 ppm/°C |
| Construction form | D2PAK |
| Temperature range | -55...+155 °C |
| 長度 | 10.5mm |
| 系列 | D2TO20 |
| 外殼樣式 | 模制 |
| 容差 | ±1% |
| 最高工作溫度 | +155°C |
| 額定功率 | 20W |
| 高度 | 15.4mm |
| 技術 | 厚膜 |
| 最低工作溫度 | -55°C |
| 溫度系數 | ±150ppm/°C |
| 最大溫度系數 | +150ppm/°C |
| 電阻值 | 10 Ω |
| 尺寸 | 10.5 x 4.5 x 15.4mm |
| 封裝/外殼 | TO-263 |
| 深度 | 4.5mm |
| 最小溫度系數 | -150ppm/°C |
| Board Level Components | Y |
