DA1206B102R-10
Ind Chip 1KOhm 100MHz 200mA 1206
廠商型號:
DA1206B102R-10
芯天下內部編號:
221-DA1206B102R-10
生產廠商:
laird tech/steward
描述:
Ind Chip 1KOhm 100MHz 200mA 1206
產品類別:
Inductor|Inductor Surface Mount

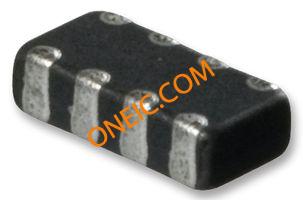

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package/Case | 1206 |
| Type | Chip |
| Maximum DC Current | 200 mA |
| Maximum DC Resistance | 800 mOhm |
| Impedance | 1 KOhm |
| Product Depth | 1.8 mm |
| Product Height | 1 mm |
| Standard Package | Tape & Reel |
| Standard Package | Cut Tape |
| Subcategory | Ferrite Beads |
| Packaging | Tape and Reel |
| Lead Time | 84 Days |
| Filter Type | Differential Mode - 4 Line Array |
| Current Rating | 200mA |
| DC Resistance (DCR) | 800 mOhm Max |
| Height (Max) | 0.039" (1.00mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Impedance @ Frequency | 1 kOhm @ 100MHz |
| rohs | Lead free / RoHS Compliant |
| Other Names | 240-2483-1 |
| Factory Pack Quantity | 3000 |
| Product | Ferrite Chip Bead Arrays |
| Product Category | EMI Filter Beads, Chips & Arrays |
| Dimensions | 1.6 mm W x 3.2 mm L x 0.8 mm H |
| Operating Temperature Range | - 40 C to + 125 C |
| Termination Style | SMD/SMT |
| Unit Weight | 0.009520 oz |
| Case Length | 3.2 mm |
| Test Frequency | 100 MHz |
| Case Height | 0.8 mm |
| Package / Case | 1206 (3216 metric) |
| Case Width | 1.6 mm |
| RoHS | RoHS Compliant |
| Ferrite Case Style | :1206 [3216 Metric] |
| Ferrite Mounting | :SMD |
| Impedance @ 100MHz | :1kohm |
| Impedance Tolerance | :- |
| DC Current Rating | :200mA |
| DC Resistance Max | :0.8ohm |
| Series | :DA |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.00003 |
| Tariff No. | 85049011 |
