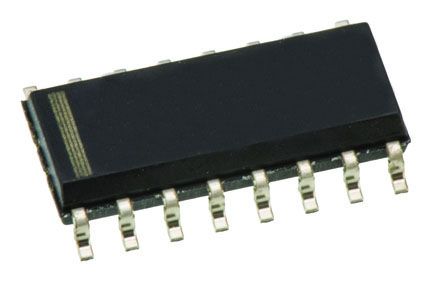

DAC714U
DAC 1-CH R-2R 16-bit 16-Pin SOIC Tube
.jpg)
廠商型號:
DAC714U
芯天下內部編號:
136-DAC714U
生產廠商:
texas instruments
描述:
DAC 1-CH R-2R 16-bit 16-Pin SOIC Tube
產品類別:
Semiconductors|Integrated Circuits - ICs|Data Conversion ICs|Digital to Analog Converters - DAC
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 16SOIC |
| Resolution | 16 Bit |
| Conversion Rate | 86 Ksps |
| Architecture | R-2R |
| Digital Interface Type | Serial (2-Wire) |
| Number of Outputs per Chip | 1 |
| Output Type | Voltage |
| Full Scale Error | ±0.25 %FSR |
| Integral Nonlinearity Error | ±4 LSB |
| Maximum Settling Time | 10 us |
| Operating Temperature | -40 to 85 °C |
| Standard Package | Rail / Tube |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | RoHS Compliant |
| Number of Converters | 1 |
| Number of DAC Outputs | 1 |
| Interface Type | Serial (2-Wire) |
| Settling Time | 10 us |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-16 Wide |
| Packaging | Tube |
| Minimum Operating Temperature | - 40 C |
| Series | DAC714 |
| Factory Pack Quantity | 40 |
| Voltage Reference | Internal |
| Mounting | Surface Mount |
| Package Width | 7.6(Max) |
| PCB | 16 |
| Maximum Dual Supply Voltage | ±16.5 |
| EU RoHS | Compliant |
| Number of DAC Channels | 1 |
| Power Supply Type | Dual |
| Maximum Settling Time | 10 |
| Minimum Operating Temperature | -40 |
| Supplier Package | SOIC |
| Standard Package Name | SOIC |
| Converter Type | General Purpose |
| Maximum Operating Temperature | 85 |
| Minimum Dual Supply Voltage | ±11.4 |
| Typical Dual Supply Voltage | ±15 |
| Package Length | 10.5(Max) |
| Pin Count | 16 |
| Package Height | 2.35(Max) |
| Lead Shape | Gull-wing |
| Number of Bits | 16 |
| Number of Outputs and Type | 1 Voltage, Unipolar; 1 Voltage, Bipolar |
| Mounting Type | Surface Mount |
| Data Interface | Serial |
| Sampling Rate (Per Second) | 86k |
| Supplier Device Package | 16-SOIC |
| Voltage Supply Source | Dual ± |
| Package/Case | 16-SOIC (0.295", 7.50mm Width) |
| rohs | Lead free / RoHS Compliant |
| Unit Weight | 0.014829 oz |
| Supply Voltage - Max | +/- 16.5 V |
| Supply Voltage - Min | +/- 11.4 V |
| Maximum Power Dissipation | 600 mW |
| Integral Nonlinearity | 8 LSB |
| Status | ACTIVE |
| Replaced By | |
| Temp (oC) | -40 to 85 |
| Package | Pins | SOIC?(DW) | 16 |
| Device Marking | View |
| Package QTY | Carrier | 40 | TUBE |
| New Flag | |
| Functional Diagram | fbd_sbas032a.gif |
| Output Range Min | -10 |
| Power Consumption | 525 |
| DAC: Channels | 1 |
| HiRel | |
| Package Group | SOIC |
| Sample / Update Rate | 0.086 |
| Gain Error | 0.2 |
| Reference Design | |
| Interface | Serial SPI |
| Operating Temperature Range | -40 to 85 |
| DNL | |
| Datasheet | SBAS032A |
| Rating | Catalog |
| TI Design | |
| Output Range Max | 10 |
| INL | 1 |
| Reference: Type | Int |
| SNR | |
| SFDR | |
| 最長穩定時間 | 10μs |
| 典型雙電源電壓 | ±15V |
| 整體非線性誤差 | ±4LSB |
| 數字式接口類型 | 串行 |
| 最高工作溫度 | +85 °C |
| 安裝類型 | 表面貼裝 |
| 分辨率 | 16 位 |
| 數模轉換器通道數目 | 1 |
| 高度 | 2.35mm |
| 電源類型 | 雙 |
| 最低工作溫度 | -40 °C |
| 滿量程誤差 | ±0.25%FSR |
| 寬度 | 7.52mm |
| 封裝類型 | SOIC |
| 轉換率 | 86ksps |
| 引腳數目 | 16 |
| 長度 | 10.28mm |
| 輸出極性 | 雙極，單極 |
| 尺寸 | 10.28 x 7.52 x 2.35mm |
| 電壓參考 | 內部 |
| 結構 | R-2R，電阻串 |
| DNL - Differential Nonlinearity | 8 LSB |
| Product | Digital to Analog Converters |
| Brand | Texas Instruments |
| Number of Channels | 1 Channel |
| Sampling Rate | 86 kS/s |
| INL - Integral Nonlinearity | 8 LSB |
| Height | 2.35 mm |
| Pd - Power Dissipation | 600 mW |
