DC-ME-01T-S
Networking Modules Single DC-ME-01T-S Package
廠商型號:
DC-ME-01T-S
芯天下內部編號:
108-DC-ME-01T-S
生產廠商:
Digi International
描述:
Networking Modules Single DC-ME-01T-S Package
產品類別:
Embedded Solutions|Ethernet & Communication Modules|Networking Modules

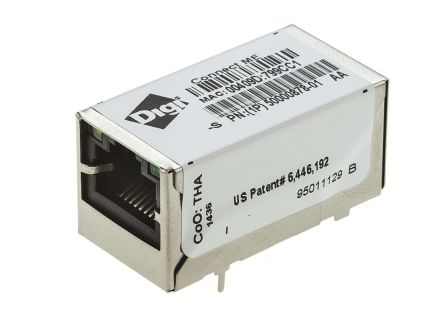

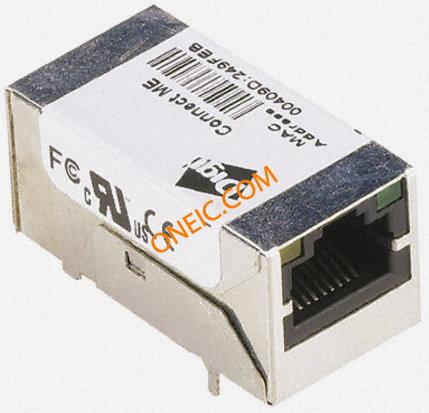

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Networking Modules |
| RoHS | RoHS Compliant |
| Product | Device Servers |
| Processor Type | NS7520 |
| Frequency | 55 MHz |
| RAM | 8 MB |
| Flash | 2 MB |
| Data Rate | 230 kbps, 10 Mbps, 100 Mbps |
| Interface Type | Ethernet, Serial |
| Operating Supply Voltage | 3.3 V |
| Maximum Operating Temperature | + 85 C |
| Dimensions | 36.7 mm x 19.1 mm x 21.7 mm |
| Description/Function | Secure network device server module with plug-and-play firmware |
| Memory Type | NOR Flash, SDRAM |
| Minimum Operating Temperature | - 40 C |
| Operating Supply Current | 270 mA |
| Power Consumption | 891 mW |
| Security | No |
| Factory Pack Quantity | 10 |
| Part # Aliases | DC-ME-01T-S |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| Body Orientation | Right Angle |
| Number of Ports | 1 |
| Gender | F |
| Termination Method | Solder |
| Number of Contacts | 8 |
| Type | Modular Jack |
| Core Processor | ARM7TDMI, NS7520 |
| Connector Type | RJ45 |
| Size / Dimension | 1.45" x 0.75" (36.7mm x 19.1mm) |
| Module/Board Type | MPU Core |
| Standard Package | 1 |
| Operating Temperature | -40°C ~ 85°C |
| RAM Size | 8MB |
| Speed | 55MHz |
| Flash Size | 2MB |
| rohs | Lead free / RoHS Compliant |
| Height | 21.69mm |
| Length | 36.703mm |
| Supply Voltage | 3.3V |
| Supported Bus Interfaces | UART |
| Supported Network Interfaces | 10/100 Base-T |
| Width | 19.05mm |
| Module Interface | :Ethernet |
| Development Tool Type | :Embedded Module |
| Kit Features | :Plug-and-Play Firmware, Integrated 10/100Mbit Ethernet Interface, UART Serial Interface |
| Weight (kg) | 0.04 |
| Tariff No. | 85235290 |
| Receiver sensitivity | -82dBm |
| Transfer rate | 11Mbps |
| Multiplicity | 1 |
| Ciphering | WEP, WPA, WPA2 |
| Communications modules features | IEEE 802.11b |
| Gross weight | 0.02 kg |
| Communications module type | Ethernet |
| Supply voltage | 3.3V DC |
| Collective package [pcs] | 50 |
| spg | 50 |
