DE1A-12V
General Purpose Relays 1 Form A, 12VDC Powe Relay Polar 10A
廠商型號:
DE1A-12V
芯天下內部編號:
282-DE1A-12V
生產廠商:
Panasonic Electric Works
描述:
General Purpose Relays 1 Form A, 12VDC Powe Relay Polar 10A
產品類別:
Electromechanical|Relays|General Purpose Relays
客戶編號:
規格書:
查看PDF

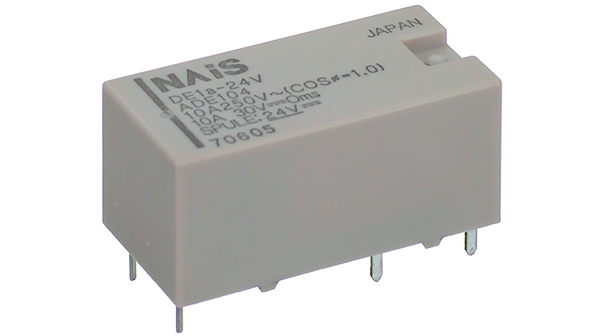

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | General Purpose Relays |
| RoHS | RoHS Compliant |
| Contact Form | 1 Form A (SPST-NO) |
| Coil Voltage | 12 V |
| Coil Resistance | 720 Ohms |
| Coil Current | 16.6 mA |
| Mounting Style | Through Hole |
| Contact Material | Silver Tin Oxide |
| Coil Termination | Solder Pin |
| Coil Type | Single Side Stable |
| Contact Termination | Solder Terminal |
| Packaging | Tube |
| Power Consumption | 200 mW |
| Factory Pack Quantity | 50 |
| Turn On Voltage (Max) | 8.4 VDC |
| Turn Off Voltage (Min) | 1.2 VDC |
| Coil Power | 200 mW |
| Relay Type | General Purpose |
| Termination Style | PC Pin |
| Switching Voltage | 250VAC, 30VDC - Max |
| Release Time | 5ms |
| Operating Temperature | -40°C ~ 70°C |
| Operate Time | 10ms |
| Contact Rating (Current) | 10A |
| Standard Package | 50 |
| Mounting Type | Through Hole |
| rohs | Lead free / RoHS Compliant |
| 導通電壓（最大值） | 8.4 VDC |
| 關閉電壓（最小值） | 1.2 VDC |
| 系列 | DE |
| 繼電器類型 | General Purpose |
| 開關電壓 | 250VAC, 30VDC - Max |
| 額定接觸（電流） | 10A |
| 線圈電壓 | 12VDC |
| 釋放時間 | 5ms |
| 線圈類型 | Non Latching |
| 接觸點外形 | SPST-NO (1 Form A) |
| 線圈電流 | 16.7mA |
| 工作時間 | 10ms |
| Dimensions L x W x H | 25 x 12.5 x 12 mm |
| Ucoil | 12 |
| Rcoil | 720 |
| Switching voltage | 440 |
| Contacts | 1 make contact (NO) |
| Pcoil | 200 |
| Switching current | 10 A@ 250 VAC |
| Relay type | Monostable |
| Switching capacity | 2500 VA |
| Test voltage | 5 |
| Pitch | 2.54 |
| Temperature range | -40...+70 °C |
| Protection rating | IP 67 |
| Contact material | AgSnO2 |
