DE1A1B-L2-12V
General Purpose Relays 1FormA,1FormB,12VDC Powe Relay Polar 10A
廠商型號:
DE1A1B-L2-12V
芯天下內部編號:
282-DE1A1B-L2-12V
生產廠商:
Panasonic Electric Works
描述:
General Purpose Relays 1FormA,1FormB,12VDC Powe Relay Polar 10A
產品類別:
Electromechanical|Relays|General Purpose Relays

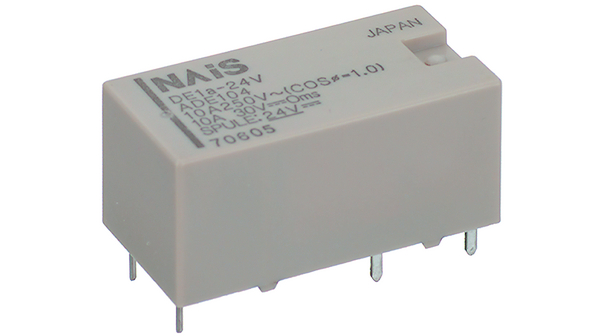

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | General Purpose Relays |
| RoHS | RoHS Compliant |
| Contact Form | 1 Form A (SPST-NO), 1 Form B (SPST-NC) |
| Contact Current Rating | 8 A |
| Coil Voltage | 12 V |
| Coil Resistance | 720 Ohms |
| Coil Current | 16.6 mA |
| Mounting Style | Through Hole |
| Contact Material | Silver Tin Oxide |
| Coil Termination | Solder Pin |
| Coil Type | Latching Dual Coil |
| Contact Termination | Solder Terminal |
| Packaging | Tube |
| Power Consumption | 200 mW |
| Factory Pack Quantity | 50 |
| Relay Construction | Latching Double Coil |
| Coil Suppression Diode | No |
| Mounting | Through Hole |
| Termination Style | PC Pin |
| Maximum Current Rating | 8 |
| Maximum DC Voltage Rating | 230 |
| Type | Power Relay |
| Coil Current | 16.6 |
| Contact Arrangement | SPST-NO|SPST-NC |
| Push to Test Button | No |
| Minimum Operating Temperature | -40 |
| Product Length | 25 |
| Maximum Operating Temperature | 70 |
| Maximum Power Rating | 240W|2kVA |
| EU RoHS | Compliant |
| Coil Resistance | 720 |
| Operate Time | 10 |
| DC Coil Voltage | 12 |
| Product Depth | 12.5 |
| Number of Terminals | 8 |
| Maximum AC Voltage Rating | 440 |
| Product Height | 12.5 |
| Seal | Unsealed |
| Maximum Pick-Up Voltage | 8.4VDC |
| LED Indicator | No |
| Turn On Voltage (Max) | 8.4 VDC |
| Coil Power | 200 mW |
| Relay Type | General Purpose |
| Switching Voltage | 250VAC, 30VDC - Max |
| Release Time | 5ms |
| Operating Temperature | -40°C ~ 70°C |
| Operate Time | 10ms |
| Contact Rating (Current) | 8A |
| Standard Package | 50 |
| Mounting Type | Through Hole |
| rohs | Lead free / RoHS Compliant |
| Product Range | :PANASONIC EW - DE(ADE) Series |
| Contact Current | :8A |
| Contact Voltage VAC | :250V |
| Contact Voltage VDC | :30V |
| Contact Configuration | :(Not Available) |
| Relay Mounting | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| Coil Voltage VDC Nom | :12V |
| Contact Current Max | :8A |
| Contact Voltage AC Nom | :250V |
| Contact Voltage DC Nom | :30V |
| External Depth | :12.5mm |
| External Height | :12.5mm |
| External Width | :25mm |
| Nom Operating Power | :200mW |
| Weight (kg) | 0.0066 |
| Tariff No. | 85364900 |
