DG405DJ-E3
Analog Switch Dual DPST 16-Pin PDIP
廠商型號:
DG405DJ-E3
芯天下內部編號:
5-DG405DJ-E3
生產廠商:
vishay / siliconix
描述:
Analog Switch Dual DPST 16-Pin PDIP
產品類別:
Analog Switch Multiplexer

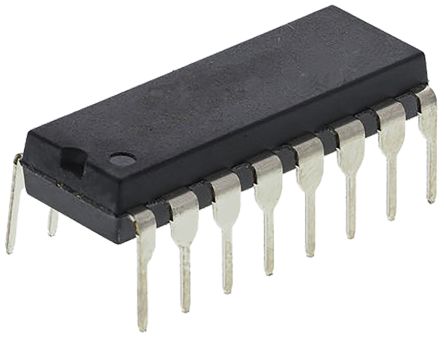

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 16PDIP |
| Type | Analog Switch |
| Maximum On Resistance | 55@±13.5V Ohm |
| Number of Channels per Chip | 2 |
| Maximum Turn-Off Time | 100@±15V ns |
| Maximum Turn-On Time | 150@±15V ns |
| Switch Architecture | DPST |
| Chip Enable Signals | Yes |
| Configuration | Dual DPST |
| Minimum Dual Supply Voltage | ±7 V |
| Maximum Dual Supply Voltage | ±22 V |
| Minimum Single Supply Voltage | 13 V |
| Maximum Single Supply Voltage | 36 V |
| Standard Package | Bulk |
| Standard Package | Rail / Tube |
| Product Category | Analog Switch ICs |
| RoHS | RoHS Compliant |
| Number of Switches | 2 |
| Switch Configuration | DPST |
| On Resistance (Max) | 45 Ohms |
| On Time (Max) | 150 ns |
| Off Time (Max) | 100 ns |
| Operating Supply Voltage | 15 V, 18 V, 24 V, 28 V |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | Through Hole |
| Package / Case | DIP-16 |
| Maximum Power Dissipation | 450 mW |
| Minimum Operating Temperature | - 40 C |
| Packaging | Tube |
| Factory Pack Quantity | 500 |
| Supply Current | 0.00001 mA |
| Supply Current (Max) | 0.001 mA |
| Supply Voltage - Max | 25 V |
| Supply Voltage - Min | 13 V |
| Polarity | Non-Inverting |
| Typical Single Supply Voltage | 15|18|24|28 |
| Mounting | Through Hole |
| Package Width | 7.87(Max) |
| PCB | 16 |
| Maximum On Resistance | 55@±13.5V |
| Maximum Power Dissipation | 450 |
| Maximum Dual Supply Voltage | ±22 |
| Maximum Turn-Off Time | 100@±15V |
| EU RoHS | Compliant |
| Maximum Supply Current | ±0.001@±16.5V |
| Power Supply Type | Single|Dual |
| Minimum Operating Temperature | -40 |
| Supplier Package | PDIP |
| Standard Package Name | PDIP |
| Maximum Operating Temperature | 85 |
| Maximum Single Supply Voltage | 36 |
| Minimum Dual Supply Voltage | ±7 |
| Typical Dual Supply Voltage | ±9|±12|±15|±18 |
| Number of Inputs per Chip | 4 |
| Package Length | 19.43(Max) |
| Pin Count | 16 |
| Number of Outputs per Chip | 4 |
| Minimum Single Supply Voltage | 13 |
| Package Height | 4.45(Max) |
| Maximum Turn-On Time | 150@±15V |
| Lead Shape | Through Hole |
| Unit Pack | 25 |
| MOQ | 500 |
| Function | Switch |
| Circuit | 2 x DPST - NO |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-PDIP |
| Voltage Supply Source | Dual Supply |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 1μA |
| On-State Resistance | 45 Ohm |
| Voltage - Supply, Single/Dual (±) | ±15V |
| Other Names | DG405DJE3 |
| Package/Case | 16-DIP (0.300", 7.62mm) |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 19.43 x 7.87 x 4.45mm |
| Height | 4.45mm |
| Input Signal Type | Differential |
| Length | 19.43mm |
| Output Signal Type | Single Ended |
| Package Type | PDIP |
| Switch Type | Analogue |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±18 V, ±9 V |
| Typical Single Supply Voltage | 15 V, 18 V, 24 V, 28 V |
| Width | 7.87mm |
| On Time - Max | 150 ns |
| Supply Current - Max | 0.001 mA |
| On Resistance - Max | 45 Ohms |
| Off Time - Max | 100 ns |
| 功能 | Switch |
| 供應商器件封裝 | 16-PDIP |
| 電壓 - 電源，單/雙 (±) | ±15V |
| 操作溫度 | -40°C ~ 85°C |
| 導通電阻 | 45 Ohm |
| 電壓源 | Dual Supply |
| 電路 | 2 x DPST - NO |
| 封裝/外殼 | 16-DIP (0.300", 7.62mm) |
| 電流 - 電源 | 1μA |
| 典型雙電源電壓 | ±12 V, ±15 V, ±18 V, ±9 V |
| 輸入信號類型 | 差分 |
| 典型單電源電壓 | 15 V, 18 V, 24 V, 28 V |
| 開關類型 | 模擬 |
| 配置 | 雙雙刀單擲 |
| 高度 | 4.45mm |
| 電源類型 | 雙，單 |
| 最低工作溫度 | -40 °C |
| 安裝類型 | 通孔 |
| Board Level Components | Y |
| 最大功率耗散 | 450 mW |
| 寬度 | 7.87mm |
| 封裝類型 | PDIP |
| 最高工作溫度 | +85 °C |
| 引腳數目 | 16 |
| 長度 | 19.43mm |
| 輸出信號類型 | 單端 |
| 尺寸 | 19.43 x 7.87 x 4.45mm |
| 每片芯片通道數目 | 2 |
| Supply Type | Single Supply, Dual Supply |
| Dual Supply Voltage | +/- 15 V |
| Switch Continuous Current | 30 mA |
| Brand | Vishay Semiconductors |
| Switch Voltage - Max | +/- 15 V |
| Series | DG |
| Pd - Power Dissipation | 450 mW |
