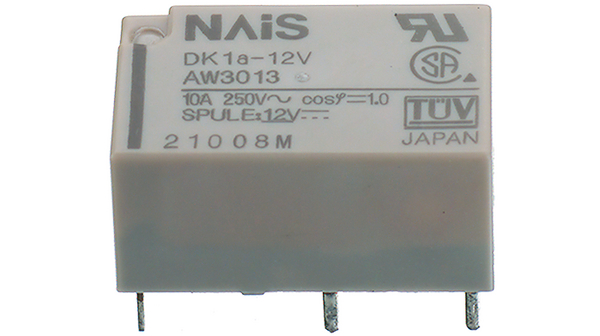

DK1A-12V-F
General Purpose Relays 10A 12VDC SPST-NO SEALED
廠商型號:
DK1A-12V-F
芯天下內部編號:
282-DK1A-12V-F
生產廠商:
Panasonic Electric Works
描述:
General Purpose Relays 10A 12VDC SPST-NO SEALED
產品類別:
Electromechanical|Relays|General Purpose Relays
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | General Purpose Relays |
| RoHS | RoHS Compliant |

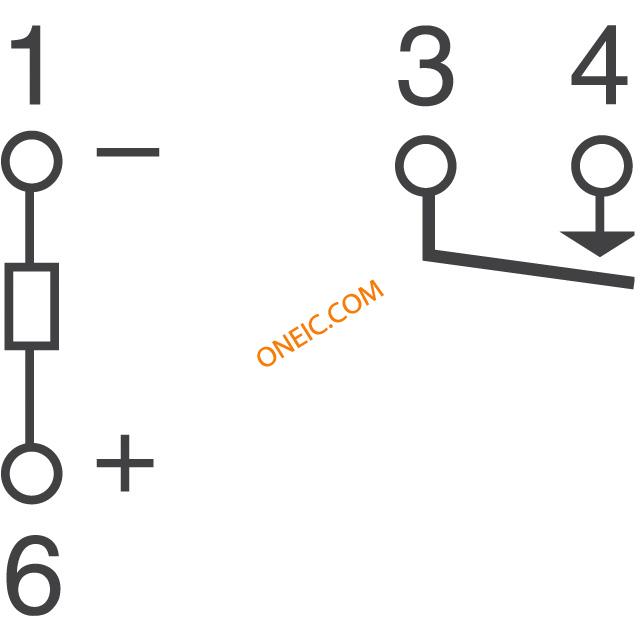

| Contact Form | 1 Form A (SPST-NO) |
| Contact Current Rating | 10 A |
| Coil Voltage | 12 V |
| Coil Resistance | 720 Ohms |
| Coil Current | 16.6 mA |
| Switching Voltage | 250 VAC, 30 VDC |

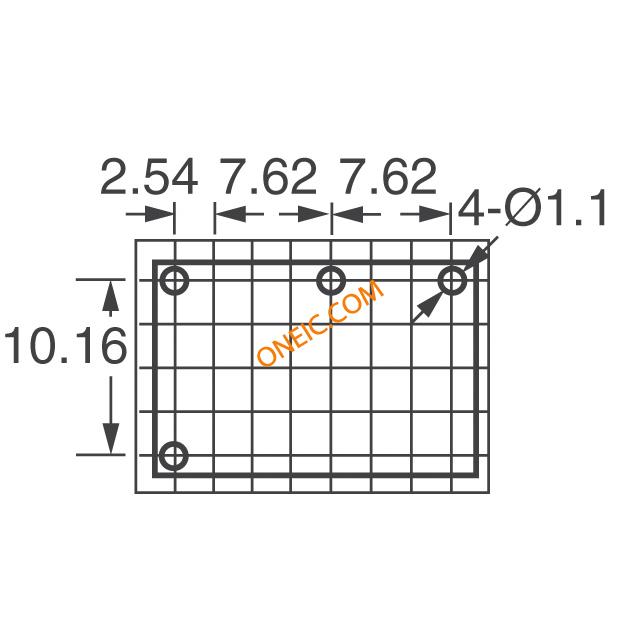

| Mounting Style | Through Hole |
| Contact Material | Silver Tin Oxide |
| Coil Termination | Solder Terminal |
| Coil Type | Single Side Stable |
| Contact Termination | Solder Terminal |
| Packaging | Bulk |
| Power Consumption | 200 mW |
| Factory Pack Quantity | 50 |
| Type | Miniature Power Relay |
| Relay Construction | Non-Latching |
| Coil Suppression Diode | No |
| Mounting | Through Hole |
| Termination Style | PC Pin |
| Maximum Current Rating | 10 |
| Maximum DC Voltage Rating | 125 |
| Minimum Dropout Voltage | 1.2VDC |
| Coil Current | 16.6 |
| Contact Arrangement | SPST-NO |
| Push to Test Button | No |
| Minimum Operating Temperature | -40 |
| Product Length | 20 |
| Maximum Operating Temperature | 65 |
| Maximum Power Rating | 300W|2.5kVA |
| EU RoHS | Compliant |
| Coil Resistance | 720 |
| Operate Time | 10 |
| DC Coil Voltage | 12 |
| Product Depth | 12.5 |
| Number of Terminals | 4 |
| Maximum AC Voltage Rating | 250 |
| Product Height | 10 |
| Seal | Sealed |
| Maximum Pick-Up Voltage | 8.4VDC |
| LED Indicator | No |
| Turn On Voltage (Max) | 8.4 VDC |
| Features | Sealed - Fully |
| Turn Off Voltage (Min) | 1.2 VDC |
| Coil Power | 200 mW |
| Relay Type | General Purpose |
| Release Time | 8ms |
| Operating Temperature | -40°C ~ 65°C |
| Operate Time | 10ms |
| Contact Rating (Current) | 10A |
| Standard Package | 50 |
| Mounting Type | Through Hole |
| rohs | Lead free / RoHS Compliant |
| Operating Temp Range | -40C to 65C |
| Pick-up Voltage (Max) | 8.4VDC |
| Pin Count | 4 |
| Dropout Volt (Min) | 1.2VDC |
| Rad Hardened | No |
| Voltage Rating (VAC) | 250V |
| Voltage Rating (VDC) | 125V |
| Product Length (mm) | 20 mm |
| Product Depth (mm) | 12.5 mm |
| Product Height (mm) | 10 mm |
| Coil Voltage DC | 12V |
| Push To Test Button | No |
| Dropout Volt | 1.2VDC |
| Product Range | :PANASONIC EW - DK Series |
| Contact Current | :10A |
| Contact Voltage VAC | :250V |
| Contact Voltage VDC | :30V |
| Contact Configuration | :SPST-NO |
| Relay Mounting | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| Coil Voltage VDC Nom | :12V |
| Contact Current AC Max | :10A |
| Contact Current DC Max | :16.6mA |
| Contact Current Max | :10A |
| Contact Voltage AC Max | :250VAC |
| Contact Voltage AC Nom | :250V |
| Contact Voltage DC Max | :30VDC |
| Contact Voltage DC Nom | :30V |
| External Depth | :12.5mm |
| External Height | :9.7mm |
| External Length / Height | :9.7mm |
| External Width | :20mm |
| No. of Poles | :1 |
| Nom Operating Power | :200mW |
| Series | :DK |
| Weight (kg) | 0.005 |
| Tariff No. | 85364110 |
