E203MD9V3GE

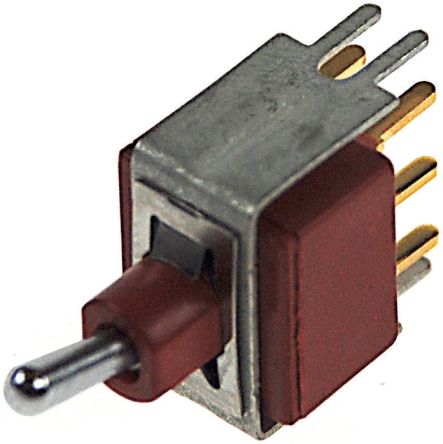

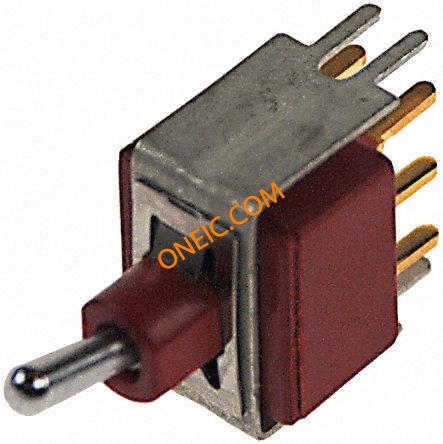

Switch Toggle ON OFF ON DPDT Round Toggle PC Pins 7.5A 250VAC 28VDC 0.4VA PC Mount with Bracket
廠商型號:
E203MD9V3GE
芯天下內部編號:
54-E203MD9V3GE
生產廠商:
c&k components
描述:
Switch Toggle ON OFF ON DPDT Round Toggle PC Pins 7.5A 250VAC 28VDC 0.4VA PC Mount with Bracket
產品類別:
Switches and Relays|Switches|Toggle Switch
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Sealed Miniature |
| Switch Configuration | ON OFF ON |
| Pole Throw Configuration | DPDT |
| Mounting | PC Mount with Bracket |
| Terminal Type | PC Pins |
| Maximum Current Rating | 7.5@125VAC 28VDC A |
| Maximum AC Voltage Rating | 250 V |
| Maximum DC Voltage Rating | 28 V |
| Maximum Power Rating | 0.4@20VAC 20VDC VA |
| Contact Material | Coin Silver |
| Contact Plating | Gold/Nickel |
| Operating Temperature | -30 to 85 °C |
| Standard Package | Bulk |
| Max. Nennwechselspannung | 250 |
| Actuator Style | Round Toggle |
| EU RoHS | Compliant |
| Produktl?nge | 16.26 |
| Kontaktmaterial | Coin Silver |
| Max. DC-Nennspannung | 28 |
| Befestigung | PC Mount with Bracket |
| Anschlusstyp | PC Pins |
| Min. Betriebstemperatur | -30 |
| Produkttiefe | 11.43 |
| Produkth?he | 25.65 |
| Kontaktplattierung | Gold/Nickel |
| Schalterkonfiguration | ON OFF ON |
| Elektrische Lebensdauer | 40000 |
| Max. Betriebstemperatur | 85 |
| Max. Nennstrom | 7.5@125VAC 28VDC |
| Typ | Sealed Miniature |
| Pol-Umschaltkonfiguration | DPDT |
| Max. Versorgungsspannungswert | 0.4@20VAC 20VDC |
| Unit Pack | 1 |
| MOQ | 50 |
| Circuit | DPDT |
| Illumination | Non-Illuminated |
| Switch Function | On-Off-On |
| Current Rating | 7.5A (AC/DC) |
| Mounting Type | Through Hole |
| Voltage Rating - AC | 125V |
| Electrical Life | 40,000 Cycles |
| Termination Style | PC Pin |
| Packaging | Bulk |
| Actuator Type | Standard Round |
| Voltage Rating - DC | 28V |
| Ingress Protection | IP57 - Dust Protected, Waterproof |
| Bushing Thread | Unthreaded |
| Actuator Material | Brass, Chrome Plated |
| Actuator Length | 6.86mm |
| Features | Epoxy Sealed Terminals |
| rohs | Lead free / RoHS Compliant |
| Contact Configuration | DPDT |
| Contact Current Rating | 7.5 A @ 125 V ac, 7.5 A @ 28 V dc |
| Contact Resistance | 10mΩ |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Switch Operation | On-Off-On |
| Factory Pack Quantity | 1 |
| RoHS | RoHS Compliant |
| Series | E |
