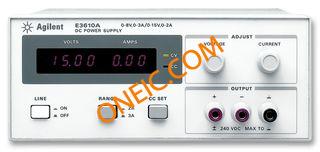

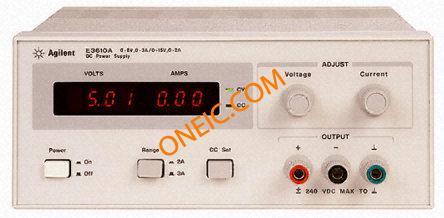

E3610A
RSCAL(6677325) DC powr supply,8/15V;3/2A
廠商型號:
E3610A
芯天下內部編號:
721-E3610A
生產廠商:
Agilent Technologies
描述:
RSCAL(6677325) DC powr supply,8/15V;3/2A
產品類別:
Power Supplies & Transformers|Power Supplies - PSUs|Bench Power Supplies
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Calibrated | RSCAL |
| Maximum Temperature | +55°C |
| Minimum Temperature | 0°C |
| Number of Displays | 2 |
| Number of Outputs | 2 |
| Output Current | 0 → 2 A, 0 → 3 A |
| Output Voltage | 0 → 15 V, 0 → 8 V |
| Power Rating | 24W |
| Supply Voltage | 110 V ac, 230 V ac |
| Type | Digital |
| rohs | Not Applicable |
| Power Supply Output Type | :Fixed |
| No. of Outputs | :1 |
| Output Voltage Min | :8V |
| Output Voltage Max | :15V |
| Output Current Min | :2A |
| Output Current Max | :3A |
| Input Voltage | :103.5V AC to 126.5V AC, 207V AC to 253V AC |
| Plug Type | :Euro, UK |
| SVHC | :Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013) |
| External Depth | :319mm |
| External Length / Height | :91mm |
| External Width | :213mm |
| Height | :88.1mm |
| Length | :318.4mm |
| Load Regulation | :0.01% |
| Manufacturers Warranty | :3 Years |
| Output Current - Output 2 | :2A |
| Output Voltage - Output 2 | :15V |
| Power Supply Type | :Linear |
| Weight | :3.8kg |
| Weight Min | :3.8kg |
| Width | :212.3mm |
| Weight (kg) | 5.1 |
| Tariff No. | 85043180 |
| Brand/Series | E3600Series |
| Current,Output | 3/2A |
| Dimensions | 3.6in.Lx8.4in.Wx12.6in.H |
| LineRegulation | 0.01%+2mV |
| LoadRegulation | 0.01%+2mV |
| NumberofOutputs | 1 |
| PowerRating | 30W(Max.) |
| Power,Output | 30W |
| Temperature,Operating | 0to55°C |
| TypeofPowerSupply | Single-Output30W |
| Voltage,Output | 8/15VDC |
| Output current resolution | 10mA |
| Multiplicity | 1 |
| Power supply | 230VAC ±10% 47-63Hz |
| Display | LED |
| Voltage (regulated) ripple and noise | ≤200μVrms |
| Gross weight | 5.53 kg |
| Pwr sup unit type | laboratory |
| Number of channels | 1 |
| Electrical parameters of output | 0...15V/2A, 0...8V/3A |
| Output voltage resolution | 10mV |
| Voltage stabilisation | ≤0,01% + 2mV |
