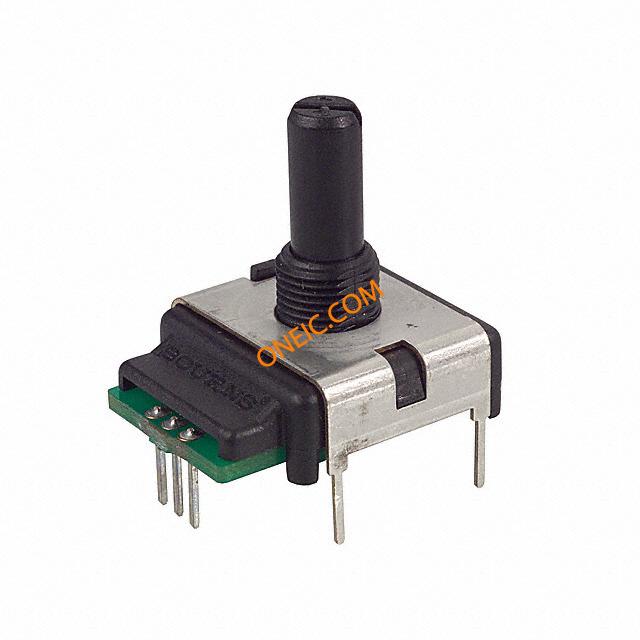

ECW1J-B24-BC0024
Encoders Digital Contacting Bushing Mount
廠商型號:
ECW1J-B24-BC0024
芯天下內部編號:
18-ECW1J-B24-BC0024
生產廠商:
Bourns
描述:
Encoders Digital Contacting Bushing Mount
產品類別:
Sensors, Transducers|Encoders|ECW
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Bracket Mount |
| Shaft Style | Plain with Slot |
| Programmable | No |
| Type | Contacting Encoder |
| Maximum Operating Speed | 120r/min |
| EU RoHS | Not Compliant |
| Shaft Diameter | 6.35 |
| Number of Channels | 2 |
| Minimum Operating Temperature | -40 |
| Mechanical Life | 200000 |
| Terminal Type | PC Pins |
| Product Length | 23.37 |
| Encoder Code | Quadrature |
| Maximum Operating Temperature | 85 |
| IP Rating | IP40 |
| Body Orientation | Straight |
| Built-In Switch | No |
| Motion | Rotary |
| Shock Rating | 50G |
| Encoder Signal | Digital Square Wave |
| Maximum Operating Torque | 2.25oz.in |
| Pulses per Revolution | 96 |
| Encoder Reading | Incremental |
| Modular Kit Encoder | No |
| Product Height | 33.02 |
| Typical Operating Supply Voltage | 10VDC |
| Detents | Yes |
| Index output | Not Indexed |
| Rotational Life (Cycles Min) | 200K |
| Mounting Type | Panel, PCB Through Hole |
| Termination Style | PC Pin |
| Encoder Type | Mechanical |
| Output Type | Quadrature (Incremental) |
| Detent | Yes |
| Actuator Type | 1/4" Dia Slotted End |
| Standard Package | 45 |
| Built in Switch | No |
| Other Names | ECW1JB24BC0024 |
| Orientation | Vertical |
| rohs | Contains lead / RoHS non-compliant |
| Sensor type | mechanical encoder |
| Resolution | 24imp/revol. |
| Multiplicity | 1 |
| Gross weight | 0.02 kg |
| Operating temperature | 1...125°C |
| Dimensions | see |
| Features | output in 2 bit Gray code, shaft 6,35 mm |
| Max operating voltage | 350V AC |
| spg | 45 |
| Collective package [pcs] | 45 |
| Operating current max | 10mA |
| 旋轉壽命（最少次數） | 200k |
| 系列 | ECW |
| 編碼器類型 | Mechanical |
| 端接樣式 | PC Pin |
| 每轉脈沖數 | 24 |
| 取向 | Vertical |
| 制動器 | Yes |
| 裝配類型 | Panel, PCB Through Hole |
| 輸出類型 | Quadrature (Incremental) |
| 致動器類型 | 1/4" Dia Slotted End |
| 內置開關 | No |
