EEA-FC1E100
Cap Aluminum 10uF 25V 20% (4 X 7mm) Radial 1.5mm 65mA 1000 hr 105°C Bulk
.jpg)
廠商型號:
EEA-FC1E100
芯天下內部編號:
282-EEA-FC1E100
生產廠商:
panasonic
描述:
Cap Aluminum 10uF 25V 20% (4 X 7mm) Radial 1.5mm 65mA 1000 hr 105°C Bulk
產品類別:
Capacitor|Capacitor Aluminum
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Through Hole |
| Capacitance Value | 10 uF |
| Voltage | 25 Vdc |
| Tolerance | 20 % |
| Ripple Current | 65 mA |
| Lifetime | 1000 h |

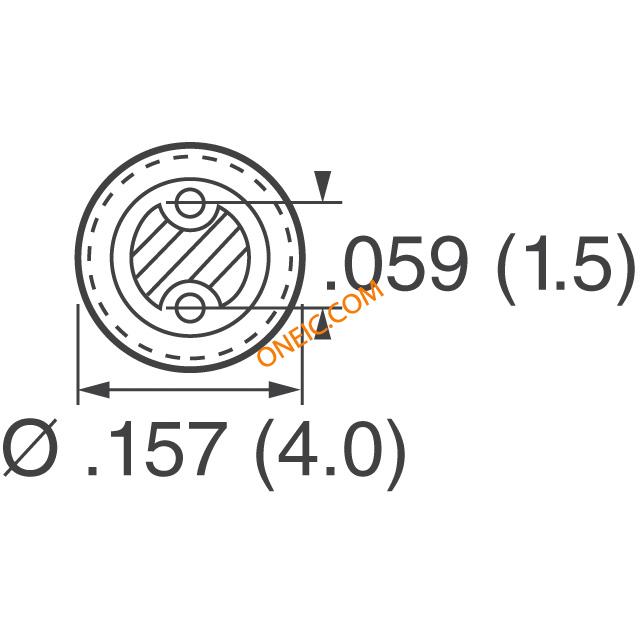

| Product Diameter | 4 mm |

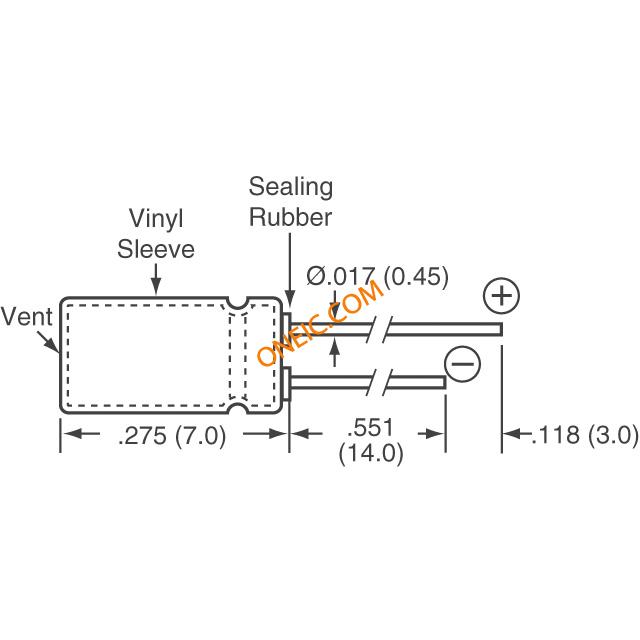

| Product Height | 7 mm |
| Lead Pitch For Radial | 1.5 mm |
| Operating Temperature | -55 to 105 °C |
| Termination Style | Radial |
| Standard Package | Bulk |
| RoHS | RoHS Compliant |
| Capacitance | 10 uF |
| Voltage Rating | 25 V |
| Operating Temperature Range | - 55 C to + 105 C |
| Case Diameter | 0.157 in |
| Case Length | 0.276 in |
| Lead Spacing | 1.5 mm |
| Product | General Purpose Electrolytic Capacitors |
| Packaging | Bulk |
| Factory Pack Quantity | 200 |
| Lead Diameter | 0.45 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 105 |
| Leakage Current | 3@2Min |
| Lifetime | 1000 |
| Product Height | 7 |
| Lead Pitch For Radial | 1.5 |
| Ripple Current | 65 |
| Type | Electrolytic |
| Product Diameter | 4 |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 4 mm Dia. x 7 mm L |
| Series | FC |
| Load Life | 1000 h |
| ESR | 2 Ohms |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | 0.45 mm |
| Construction | Radial |
| Tolerance (+ or -) | 20% |
| DCL | 3@2Min uA |
| Lead Spacing (nom) | 1.5 mm |
| Mounting Style | Through Hole |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 7 mm |
| Size (mm) | 4 X 7 |
| Product Diameter (mm) | 4 mm |
| Product Range | :PANASONIC - FC Series |
| Capacitance Tolerance | :± 20% |
| Diameter | :4mm |
| Height | :7mm |
| Capacitor Terminals | :Radial Leaded |
| Weight (kg) | 0 |
| Tariff No. | 85322200 |
| Brand/Series | FC Series |
| Case Size | 4 mm Dia. x 7 mm L |
| Current, Ripple | 0.065 A |
| Diameter, Lead | 0.45 mm |
| Lead Type | Straight |
| Life | 1000 Hours |
| Material, Element | Aluminum Electrolytic |
| Temperature Range | –55 to 105 °C |
| Termination | Radial |
| Voltage, Rating | 25 VDC |
