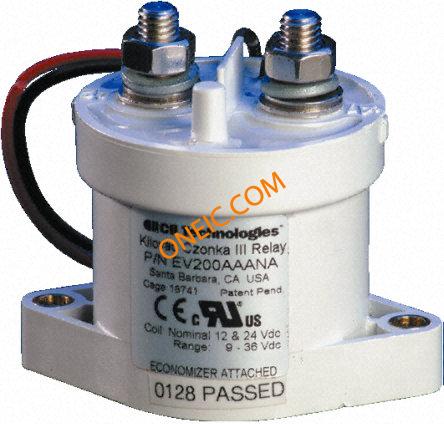

EV200HAANA
Industrial Relays SPST-NO 9-36VDC 200A Kilovac
廠商型號:
EV200HAANA
芯天下內部編號:
35-EV200HAANA
生產廠商:
TE Connectivity / Kilovac
描述:
Industrial Relays SPST-NO 9-36VDC 200A Kilovac
產品類別:
Electromechanical|Relays|Industrial Relays
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Industrial Relays |
| RoHS | RoHS Compliant |
| Contact Form | 1 Form A (SPST-NO) |
| Contact Current Rating | 500 A |
| Coil Voltage | 9 VDC to 36 VDC |
| Coil Current | 0.13 A, 0.07 A |
| Switching Voltage | 900 VDC |
| Mounting Style | Chassis |
| Contact Termination | Screw |
| Type | EV200 Series Contactor |
| Part # Aliases | 1-1618002-8 |
| Turn On Voltage (Max) | 9 VDC |
| Features | Sealed - Hermetically |
| Coil Type | Non Latching |
| Turn Off Voltage (Min) | 6 VDC |
| Relay Type | Contactor |
| Termination Style | Screw Terminal |
| Release Time | 12ms |
| Packaging | Bulk |
| Operating Temperature | -40°C ~ 85°C |
| Operate Time | 15ms |
| Contact Rating (Current) | 500A |
| Standard Package | 1 |
| Mounting Type | Chassis Mount |
| rohs | Lead free / RoHS Compliant |
| Application | High Voltage |
| Contact Configuration | SPST-NO |
| Depth | 65.6mm |
| Height | 72.3mm |
| Length | 80.48mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Terminal Type | Screw |
| Operating Voltage | :900VDC |
| Load Current Inductive | :500A |
| Load Current Resistive | :500A |
| No. of Poles | :1 |
| Contactor Direction | :- |
| Relay Mounting | :Panel |
| Coil Voltage VDC Nom | :36V |
| MSL | :- |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Weight (kg) | 0.43 |
| Tariff No. | 85369010 |
| Brand/Series | Czonka/EV200Series |
| ContactConfiguration | SPST-NO |
| ContactForm | SPST-NO |
| CurrentRating | 500A |
| Current,Rating | 500A |
| Function | Contactor |
| MountingType | Bottom |
| PrimaryType | Contactor |
| RelayType | ElectroMechanical |
| Standards | cULus,CE |
| Termination | None |
| TycoPartNumber | 1-1618002-8 |
| Voltage,Control | 36VDC |
| Voltage,Rating | 900VDC |
