EVN-DJAA03B15

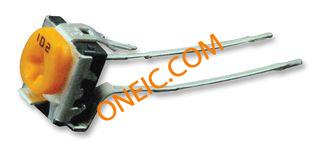

TRIMMER POT.: CARBON,6MM SQUARE,TOP ADJ.TYPE: EVNDJA(TAPE),D
廠商型號:
EVN-DJAA03B15
芯天下內部編號:
282-EVN-DJAA03B15
生產廠商:
panasonic
描述:
TRIMMER POT.: CARBON,6MM SQUARE,TOP ADJ.TYPE: EVNDJA(TAPE),D
產品類別:
Resistor|Resistor Trimmers, Potentiometer and Rheostat
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| RoHS | RoHS Compliant |
| Product | Trimmer Resistors - SMD |
| Product Type | Single Turn |
| Adjustment | Top Crossed |
| Packaging | Reel |
| Factory Pack Quantity | 10000 |
| メーカ | Panasonic |
| 製品 | Trimmer Resistors - SMD |
| 製品タイプ | Single Turn |
| 調節 | Top Crossed |
| パッケージ化 | Reel |
| 工場パックの數量 | 10000 |
| Industry Aliases | EVNDJAAO3B15 |
| Subcategory | Resistor Trimmers, Potentiometer and Rheostat |
| Lead Time | 77 Days |
| Resistance (Ohms) | 100k |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Number of Turns | Single |
| Size / Dimension | Square - 0.264" L x 0.252" W x 0.250" H (6.70mm x 6.40mm x 6.35mm) |
| Resistive Material | Carbon |
| Power (Watts) | 0.1W, 1/10W |
| Adjustment Type | Top Adjustment |
| Standard Package | 1,000 |
| Tolerance | ±30% |
| rohs | Lead free / RoHS Compliant |
| Other Names | DJA15CT |
| Track Resistance | :100kohm |
| No. of Turns | :1 |
| Resistance Tolerance | :- |
| Temperature Coefficient | :- |
| Power Rating | :100mW |
| Potentiometer Mounting | :Through Hole |
| Weight (kg) | 0 |
| Tariff No. | 85334010 |
| Angle, Mechanical | 210 Deg. |
| Brand/Series | EVN-DJA |
| Material, Element | Carbon |
| Power, Rating | 0.1 W |
| Resistance | 10 Kilohms |
| Taper | Linear |
