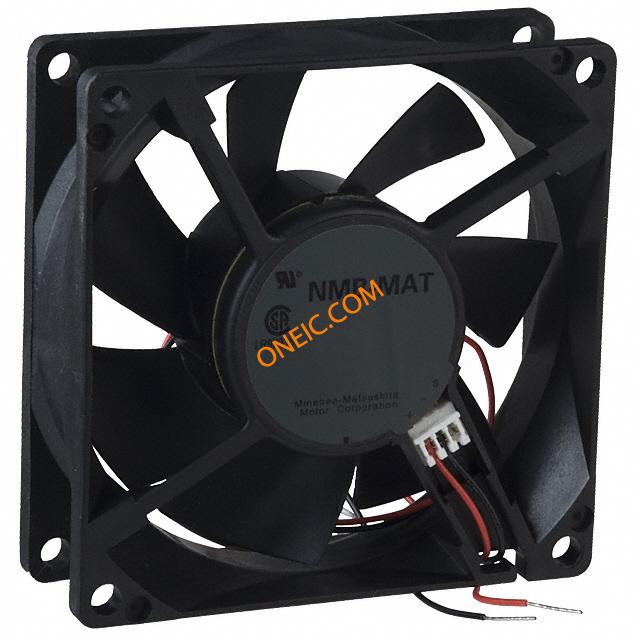

FBA08A12M1A
DC Fan Hydro Wave Bearing 12V 0.124A 1.49W 2450RPM 32.1CFM 28dB Flange Mount
廠商型號:
FBA08A12M1A
芯天下內部編號:
242-FBA08A12M1A
生產廠商:
NMB Technologies Corporation
描述:
DC Fan Hydro Wave Bearing 12V 0.124A 1.49W 2450RPM 32.1CFM 28dB Flange Mount
產品類別:
Fans, Thermal Management|DC Fans|FBA
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Length | 80 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Maximum Pressure | 0.09inH2O |
| Product Depth | 80 |
| Bearings | Hydro Wave |
| Nominal Speed | 2450 |
| Noise Level | 28 |
| Voltage Rating | 12 |
| Operating Input Voltage Range | 7 to 13.8 |
| Housing Material | Plastic |
| Power Rating | 1.49 |
| Line Current | 0.124 |
| Maximum Airflow | 32.1 |
| Mounting | Flange Mount |
| Termination | Lead Wire |
| Minimum Operating Temperature | -10 |
| Product Height | 25.4 |
| Fan Rotation | Clockwise |
| Subcategory | Blowers and Fans |
| Lead Time | 365 Days |
| Static Pressure | 0.099 in H2O (24.6 Pa) |
| Noise | 28 dB |
| Current Rating | 0.124A |
| Voltage - Rated | 12VDC |
| Standard Package | 100 |
| Bearing Type | Hydro-wave (HWB) |
| Size / Dimension | Square - 80mm L x 80mm H x 25.5mm W |
| Weight | 0.22 lb (99.79g) |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Air Flow | 32.1 CFM (0.909m3/min) |
| Fan Type | Tubeaxial |
| Life Expectancy | 50000 hrs @ 40°C |
| Voltage Range | 7 ~ 13.8VDC |
| Power (Watts) | 1.49W |
| RPM | 2450 RPM |
| rohs | Lead free / RoHS Compliant |
