FMS6346EMTC20X
Selectable SD/HD Video Filter Driver 20-Pin TSSOP T/R
廠商型號:
FMS6346EMTC20X
芯天下內部編號:
3-FMS6346EMTC20X
生產廠商:
fairchild semiconductor
描述:
Selectable SD/HD Video Filter Driver 20-Pin TSSOP T/R
產品類別:
Processor|Multimedia Misc
客戶編號:
規格書:
查看PDF

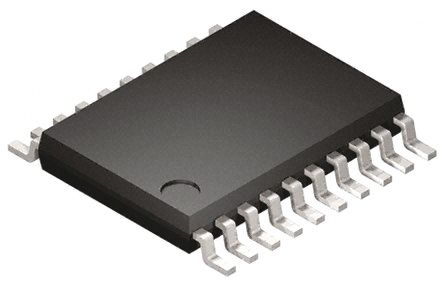

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 20TSSOP |
| Operating Temperature | -40 to 85 °C |
| Standard Package | Tape & Reel |
| Standard Package Name | TSSOP |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Packaging | Tape and Reel |
| Supplier Package | TSSOP |
| Minimum Operating Temperature | -40 |
| Pin Count | 20 |
| Lead Shape | Gull-wing |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Applications | Set-Top Boxes, Video Players |
| Type | Filter Driver |
| Package/Case | 20-TSSOP (0.173", 4.40mm Width) |
| rohs | Lead free / RoHS Compliant |
| Other Names | FMS6346EMTC20XCT |
| Factory Pack Quantity | 2500 |
| Product | Video Filter Driver |
| Minimum Operating Temperature | - 40 C |
| Maximum Power Dissipation | 84 ns |
| Series | FMS6346E |
| Unit Weight | 0.006737 oz |
| Supply Voltage | 6 V |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-20 |
| Supply Current | 50 mA |
| Maximum Operating Temperature | + 85 C |
| Maximum Output Current | 50 mA |
| RoHS | RoHS Compliant |
| 類型 | Filter Driver |
| 應用 | Set-Top Boxes, Video Players |
| 封裝/外殼 | 20-TSSOP (0.173", 4.40mm Width) |
| 供應商器件封裝 | 20-TSSOP |
| Board Level Components | Y |
| 典型單電源電壓 | 3.3 V |
| 高度 | 0.9mm |
| 電路數目 | 6 |
| 安裝類型 | 表面貼裝 |
| 電源類型 | 單 |
| 最低工作溫度 | -40 °C |
| 工作溫度范圍 | -40 → +85 °C |
| 寬度 | 4.4mm |
| 封裝類型 | TSSOP |
| 最高工作溫度 | +85 °C |
| 引腳數目 | 20 |
| 濾波器類型 | 視頻濾波器 |
| 長度 | 6.5mm |
| 尺寸 | 6.5 x 4.4 x 0.9mm |
| 最大階數 | 第 6，第 7 |
| Operating Supply Voltage | 6 V |
| Operating Supply Current | 50 mA |
| Brand | Fairchild Semiconductor |
| Pd - Power Dissipation | 84 ns |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|
| FMS6346MTC20 | Fairchild Semiconductor | Video ICs 6CH 6th Order SD HD Video Filter Driver | 查看詳情 |
| FMS6346MTC20 | rochester electronics | 查看詳情 | |
| FMS6346MTC20X | fairchild semiconductor | Video Filter Driver 20-Pin TSSOP T/R | 查看詳情 |
