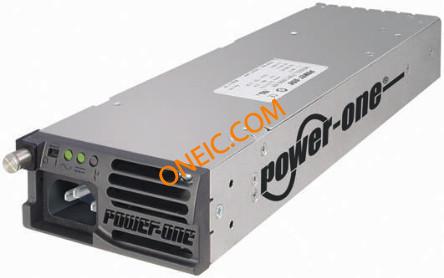

FNP850-12G
AC/DC Power Supply Single-OUT 12V 73A 856W
廠商型號:
FNP850-12G
芯天下內部編號:
323-FNP850-12G
生產廠商:
power-one
描述:
AC/DC Power Supply Single-OUT 12V 73A 856W
產品類別:
Power Supplies|AC to DC Power Supply
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Switching |
| Input Voltage | 90 to 264 V |
| Output Voltage | 12 V |
| Maximum Current Rating | 14(rms) A |
| Maximum Output Current | 73 A |
| Number of Outputs | 1 |
| Maximum Output Power | 856 W |
| Efficiency | 87(Typ) % |
| Input Frequency | 47 to 63 Hz |
| Operating Temperature | 0 to 70 °C |
| Standard Package | Bulk |
| Line Regulation | 0.17% |
| Mounting Type | Rack Mount |
| Applications | Commercial |
| Approvals | CSA, EN, TUV, UL |
| Power (Watts) - Max | 856W |
| Voltage - Output | 12V |
| Size / Dimension | 4.00" L x 1.65" W x 8.50" H (101.6mm x 41.9mm x 215.9mm) |
| Power (Watts) | 850W |
| Load Regulation | 6% |
| Output - 1 @ Current (Max) | 12 VDC @ 73A |
| Voltage - Input | 90 ~ 264 VAC |
| Power Supply Type | Switching (Closed Frame) |
| rohs | Lead free / RoHS Compliant |
| Depth | 40.6mm |
| Length | 298.2mm |
| Maximum Temperature | +50°C |
| Minimum Temperature | 0°C |
| MTBF | 250000h |
| Output Current | 73A |
| Power Rating | 850W |
| Ripple And Noise | ±1% |
| Weight | 1kg |
| Width | 85.8mm |
| Pin Count | 64 |
| Screening Level | Commercial |
| Rad Hardened | No |
| Mounting Style | Desktop |
| Operating Temperature Max Deg. C | 70C |
| Operating Temperature Min Deg. C | 0C |
| Product Length (mm) | 298.2 mm |
| Product Depth (mm) | 83.8 mm |
| Product Height (mm) | 40.6 mm |
| Output Current (Max) | 73 A |
| Output Power (Max) | 856 W |
| Output Power | 856 W |
| Brand/Series | FNPSeries |
| Configuration | Enclosed |
| MountingType | CageMount |
| NumberofOutputs | 2 |
| Operation | PFC |
| Output | 12VDC@73A,12VDC@0.5A |
| Power,Output | 856W |
| PrimaryType | AC-DC |
| SpecialFeatures | HotSwappable |
| Voltage,Input | 90-264VAC |
| Voltage,Output | 12VDC,12VDC |
