G3VM-202J1
Solid State Relays - PCB Mount 200V, DPST-NO, SOP8 SMT 200mA 5ohm 100pF
廠商型號:
G3VM-202J1
芯天下內部編號:
232-G3VM-202J1
生產廠商:
Omron Electronics
描述:
Solid State Relays - PCB Mount 200V, DPST-NO, SOP8 SMT 200mA 5ohm 100pF
產品類別:
Optoelectronics|Optocouplers / Photocouplers|Solid State Relays|Solid State Relays - PCB Mount
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Solid State Relays - PCB Mount |
| RoHS | RoHS Compliant |
| Control Voltage Range | 1 V to 1.3 V |
| Load Voltage Rating | 200 V |
| Load Current Rating | 200 mA |
| Contact Form | 1 Form A (SPST-NO) |
| Output Device | MOSFET |

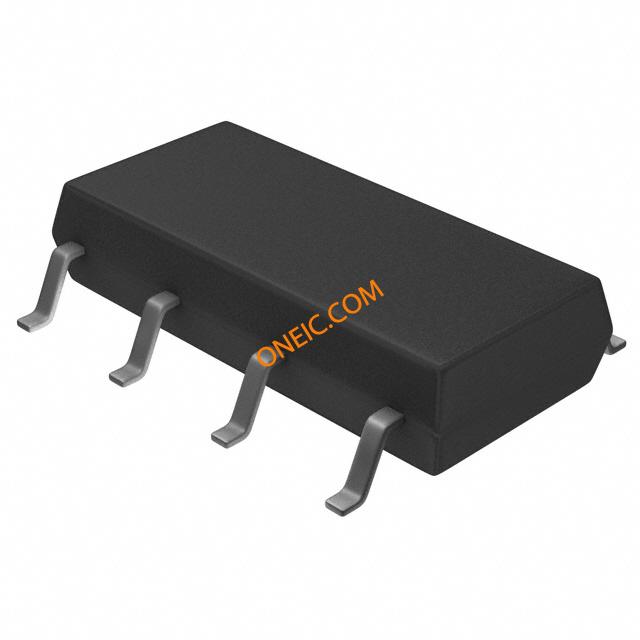

| Package / Case | SOP-8 |
| Mounting Style | SMD/SMT |
| Product Type | PCB Mount |
| Series | G3VM |
| Factory Pack Quantity | 50 |
| Termination Style | Gull Wing |
| Supplier Package | SOP |
| Standard Package Name | SOIC |
| EU RoHS | Compliant |
| I/O Isolation Voltage | 1500(RMS) |
| Input Type | DC |
| Circuit Arrangement | 2 Form A |
| Package Height | 1.9(Max) |
| Mounting | Surface Mount |
| Maximum Input Current | 50 |
| Output Type | AC |
| Maximum Input Voltage | 1.3 |
| Maximum Output Current | 0.2 |

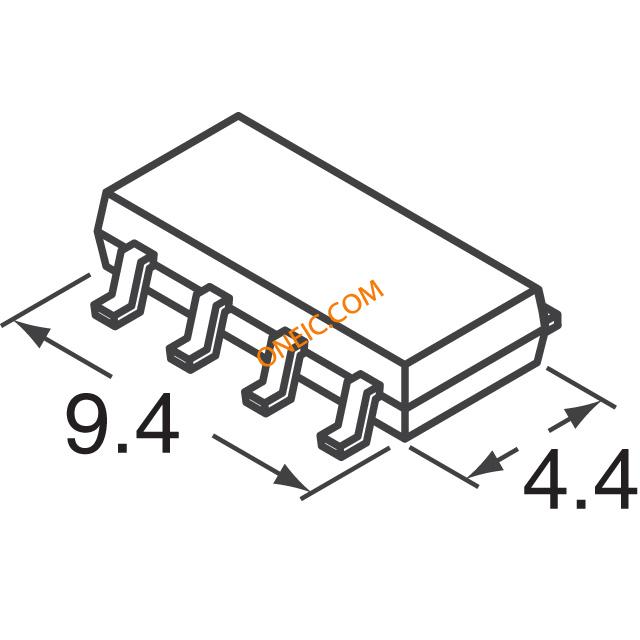

| Package Width | 4.4 |
| Maximum Output Voltage | 200 |
| PCB | 8 |
| Maximum Operating Temperature | 85 |
| Minimum Operating Temperature | -40 |
| Package Length | 9.4 |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
| Relay Type | Relay |
| Mounting Type | Surface Mount |
| Load Current | 200mA |
| Voltage - Load | 0 ~ 200 V |
| Supplier Device Package | 8-SOP |
| Packaging | Tube |
| On-State Resistance | 8 Ohm |

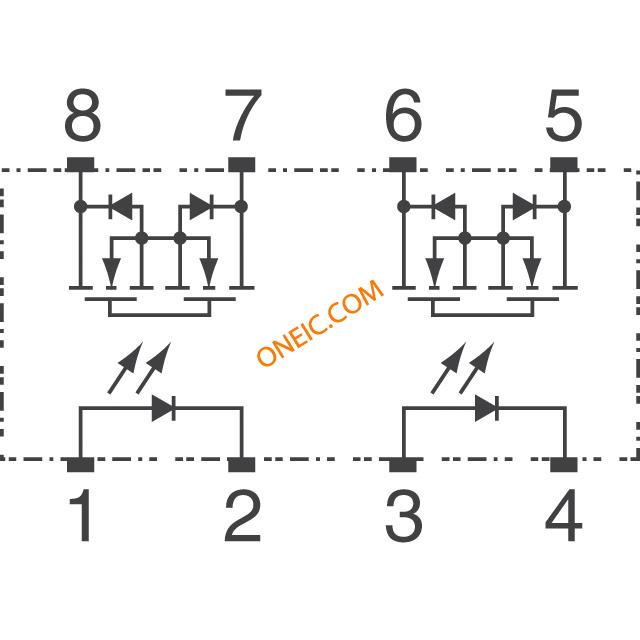

| Circuit | DPST (2 Form A) |
| Standard Package | 50 |
| Voltage - Input | 1.15VDC |
| Package/Case | 8-SOP (0.173", 4.40mm) |
| rohs | Lead free / RoHS Compliant |
| CAD Drawing | 3D CAD Model |
| Depth | 4.4mm |
| Height | 1.9mm |
| Length | 9.4mm |
| Maximum Control Voltage | 1.3 V |
| Maximum Load Current | 0.2 A |
| Maximum Load Voltage | 200 V |
| Minimum Load Current | 200 mA |
| Load Voltage Max | :200VAC |
| On State Resistance Max | :8ohm |
| Contact Configuration | :DPST-NO |
| Isolation Voltage | :1.5kV |
| Forward Current If | :7.5mA |
| Relay Terminals | :SMD |
| SVHC | :No SVHC (20-Jun-2013) |
| Control Voltage DC Max | :1.3V |
| Control Voltage DC Min | :1V |
| Dielectric Strength Voltage Vrms | :1500V |
| Turn Off Time | :0.1ns |
| Turn On Time | :0.6μs |
| Weight (kg) | 0.0002 |
| Tariff No. | 85364900 |
