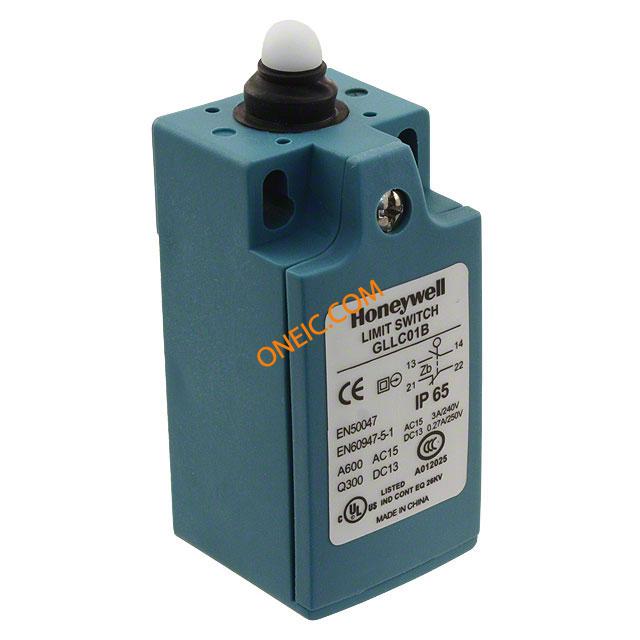

GLLC01B
Basic / Snap Action Switches 9.8N 2.22lb max 10A 1NO 1NC Dir Opening
廠商型號:
GLLC01B
芯天下內部編號:
159-GLLC01B
生產廠商:
Honeywell
描述:
Basic / Snap Action Switches 9.8N 2.22lb max 10A 1NO 1NC Dir Opening
產品類別:
Electromechanical|Switches|Basic / Snap Action Switches
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Basic / Snap Action Switches |
| RoHS | RoHS Compliant |
| Contact Form | 1 NC, 1 NO |
| Actuator | Plunger |
| Current Rating | 10 A |
| Voltage Rating AC | 300 V |
| Voltage Rating DC | 250 V |
| Operating Force | 9.8 N |
| IP Rating | IP 65 |
| NEMA Rating | 1, 12, 13 |
| Termination Style | Screw |
| Tradename | Microswitch |
| Minimum Over-Travel | 3mm |
| Pole Throw Configuration | SPDT |
| Mounting | Screw Mount |
| Maximum Current Rating | 6@120VAC |
| Housing Material | Plastic |
| Maximum DC Voltage Rating | 250 |
| Type | Global |
| Operating Speed | 2m/s |
| Actuator Style | Top Plunger |
| EU RoHS | Compliant |
| Minimum Operating Temperature | -10 |
| Mechanical Life | 5000000 |
| Terminal Type | Conduit |
| Agency Approvals | CCC/CE/cULus |
| Product Length | 30.5 |
| Maximum Operating Temperature | 80 |
| NEMA Standard as Enclosure Rating | 1, 12, 13 |
| Maximum Pre-Travel | 2.8mm |
| Body Orientation | Straight |
| Switch Configuration | N.O./N.C. |
| Device Type | Linear |
| Product Depth | 31 |
| Maximum AC Voltage Rating | 600 |
| Product Height | 70.5 |
| Operating Force | 9.8 |
| Release Force | 1.5 |
| Packaging | Bulk |
| Differential Travel | 0.060" (1.5mm) |
| Switch Function | On-Mom |
| Operating Force, Torque | 1000gf |
| Mounting Type | Chassis Mount |
| Voltage Rating - AC | 300V |
| Operating Position | 0.710" (18.0mm) |
| Overtravel | 0.118" (3.0mm) |
| Operating Temperature | -10°C ~ 80°C |
| Actuator Type | Round (Pin Plunger) |
| Standard Package | 10 |
| Voltage Rating - DC | 250V |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Pretravel | 0.110" (2.8mm) |
| Release Force | 153gf |
| Mechanical Life | 5,000,000 Cycles |
| Circuit | SPDT |
| rohs | Lead free / RoHS Compliant |
| Gross weight | 1 g |
| Multiplicity | 1 |
| Sensor type | limit switch |
| Operating Force (OF) | 9,8 N [2.22 lb] max. |
| Pretravel (PT) | 2,8 mm [0.11 in] max. |
| Overtravel (OT) | 3,0 mm [0.118 in] min. |
| Differential Travel (DT) | 1,52 mm [0.06 in] max. |
| Product Type | EN 50047 Global Limit Switch |
| Lever Type | None |
| Circuitry | 1NO 1NC Direct Opening Snap Action |
| Ampere Rating | 10 A (Thermal) |
| Supply Voltage | 300 Vac/250 Vdc max. |
| Termination Type | 20 mm [0.79 in] Conduit |
| Housing Type | EN 50047 |
| Series Name | GLL |
| Shock | 50 g per IEC 68-2-27c (w/o Actuator) |
| Vibration | 10 g per IEC 68-2-6 (w/o Actuator) |
| Sealing | IP66; NEMA 1, 12, 13 |
| UL File # | E216958 |
| Expected Mechanical Life | 5 Million |
| Comment | Top plunger; 20 mm [0.79 in] conduit |
| Agency Approvals and Standards | cULus, CE, CCC |
| UNSPSC Code | 39122213 |
| UNSPSC Commodity | 39122213 Limit Switches |
| Sealed | Industrial |
| Operating Position (OP) | 18 mm ?±0.5 mm [0.71 in ?±0.02 in] |
