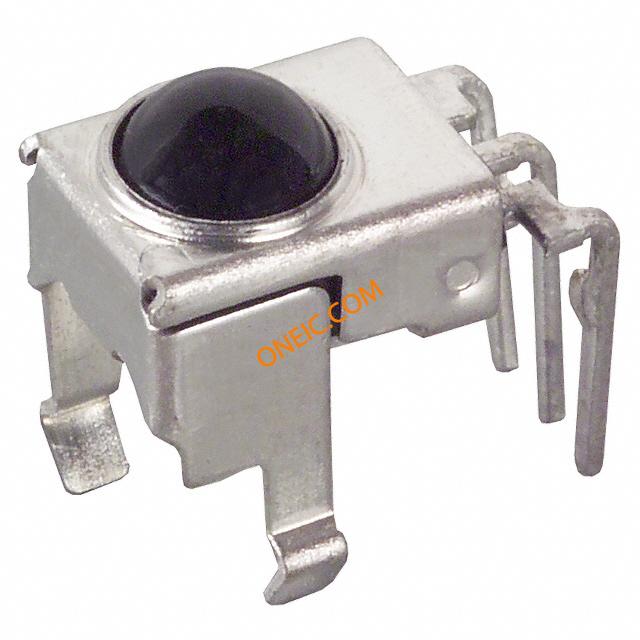

GP1UM262XK0F
IR Remote Receiver 36.7KHz 5m 3-Pin
廠商型號:
GP1UM262XK0F
芯天下內部編號:
317-GP1UM262XK0F
生產廠商:
sharp microelectronics
描述:
IR Remote Receiver 36.7KHz 5m 3-Pin
產品類別:
Interface|IR Remote Receiver
所示圖像僅為示意圖。請從產品數據表中獲得準確的規(guī)格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Transmission Distance | 5(Min) m |
| High Level Pulse Width | 1200 us |
| Low Level Pulse Width | 1000 us |
| Mounting | Through Hole |
| Operating Supply Voltage | 4.5 to 5.5 V |
| Operating Temperature | -10 to 70 °C |
| Standard Package | Trays |
| Product Category | Infrared Receivers |
| RoHS | RoHS Compliant |
| Carrier Frequency | 36.7 kHz |
| Minimum High Level Output Voltage | 4 V |
| Operating Voltage | 4.5 V to 5.5 V |
| Supply Current | 0.95 mA |
| Maximum Operating Temperature | + 70 C |
| Minimum Operating Temperature | - 10 C |
| Factory Pack Quantity | 1000 |
| Typical Operating Supply Voltage | 5 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Minimum Operating Temperature | -10 |
| Subcarrier Frequency | 36.7 |
| Transmission Distance | 5(Min) |
| Minimum High Level Output Voltage | 4 |
| Low Level Pulse Width | 1000 |
| Maximum Operating Supply Voltage | 5.5 |
| Minimum Operating Supply Voltage | 4.5 |
| Pin Count | 3 |
| High Level Pulse Width | 1200 |
| rohs | Lead free / RoHS Compliant |
