H11AA1
Optocoupler AC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP
廠商型號:
H11AA1
芯天下內部編號:
5-H11AA1
生產廠商:
vishay / semiconductor
描述:
Optocoupler AC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP
產品類別:
Optoelectronics|OptoCouplers|Transistor and Photovoltaic Output PhotoCouplers

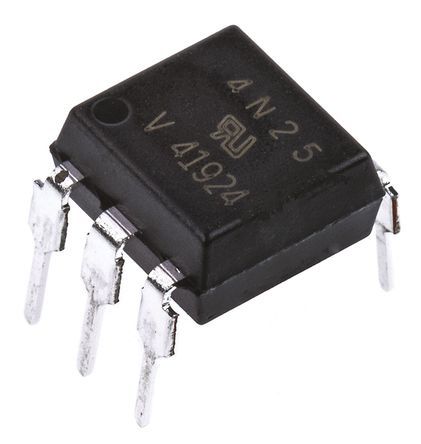

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 6PDIP |
| Input Type | AC |
| Output Type | DC |
| Number of Channels per Chip | 1 |
| Typical Forward Voltage | 1.2 V |
| Maximum Collector Emitter Voltage | 30 V |
| Maximum Forward Voltage | 1.5 V |
| Minimum Isolation Voltage | 5300 Vrms |
| Maximum Collector Emitter Saturation Voltage | 400 mV |
| Maximum Input Current | 60 mA |
| Maximum Power Dissipation | 200 mW |
| Operating Temperature | -55 to 100 °C |
| Standard Package | Bulk |
| Product Category | Transistor Output Optocouplers |
| RoHS | RoHS Compliant |
| Isolation Voltage | 5300 Vrms |
| Maximum Forward Diode Voltage | 1.5 V |
| Maximum Input Diode Current | 60 mA |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 55 C |
| Package / Case | PDIP-6 |
| Packaging | Tube |
| Forward Current | 60 mA |
| Output Device | NPN Phototransistor |
| Factory Pack Quantity | 2000 |
| Package Width | 6.5(Max) |
| Mounting | Through Hole |
| Minimum Isolation Voltage | 5300 |
| PCB | 6 |
| Maximum Power Dissipation | 200 |
| Maximum Collector Emitter Saturation Voltage | 400 |
| EU RoHS | Compliant |
| Maximum Input Current | 60 |
| Maximum Collector Emitter Voltage | 30 |
| Minimum Operating Temperature | -55 |
| Supplier Package | PDIP |
| Standard Package Name | PDIP |
| Maximum Operating Temperature | 100 |
| Maximum Forward Voltage | 1.5 |
| Package Length | 8.7(Max) |
| Pin Count | 6 |
| Package Height | 3.81(Max) |
| Lead Shape | Through Hole |
| Unit Pack | 50 |
| MOQ | 2000 |
| Current Transfer Ratio (Min) | 20% @ 10mA |
| Mounting Type | Through Hole |
| Vce Saturation (Max) | 400mV |
| Voltage - Output | 30V |
| Number of Channels | 1 |
| Current - DC Forward (If) | 60mA |
| Voltage - Isolation | 5300Vrms |
| Package/Case | 6-DIP (0.300", 7.62mm) |
| rohs | Lead free / RoHS Compliant |
| Collector-Emitter Voltage | 30 V |
| Collector-Emitter Saturation Voltage | 0.4 V |
| Power Dissipation | 0.2 W |
| Operating Temp Range | -55C to 100C |
| Package Type | PDIP |
| Number of Elements | 1 |
| Operating Temperature Classification | Industrial |
| Forward Voltage | 1.5 V |
| Rad Hardened | No |
| DELETED | Compliant |
| No. of Channels | :1 |
| Optocoupler Output Type | :Phototransistor |
| Input Current | :10mA |
| Output Voltage | :30V |
| Opto Case Style | :DIP |
| No. of Pins | :6 |
| Operating Temperature Max | :100°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Range | :-55°C to +100°C |
| Weight (kg) | 0.001 |
| Tariff No. | 85411000 |
| Case | DIP6 |
| Insulation voltage | 5.3kV |
| Optocoupler description | AC in. |
| Collector-emitter voltage | 30V |
| Type of semiconductor component | optocoupler |
| Output type | transistor |
| Gross weight | 0.94 g |
| Number of channels | 1 |
| Multiplicity | 1 |
| Current transfer ratio at forward current | 20%@10mA |
| Collective package [pcs] | 100 |

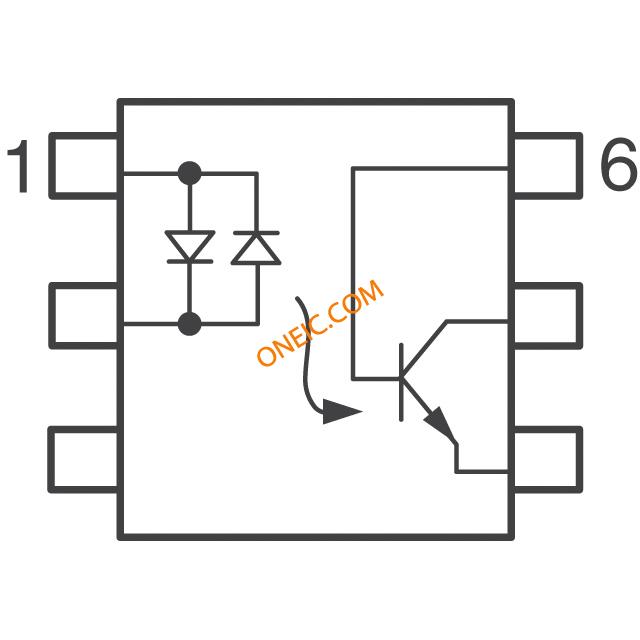

| Schematic diagram | see |
| spg | 100 |
