H11AA4M

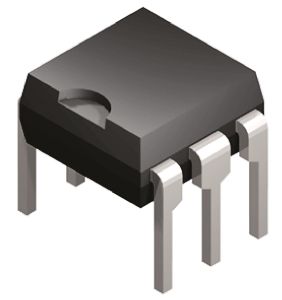

Optocoupler AC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP Bulk
-angle.jpg)
廠商型號:
H11AA4M
芯天下內部編號:
3-H11AA4M
生產廠商:
fairchild semiconductor
描述:
Optocoupler AC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP Bulk
產品類別:
Optoelectronics|OptoCouplers|Transistor and Photovoltaic Output PhotoCouplers
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 6PDIP |
| Input Type | AC |
| Output Type | DC |
| Number of Channels per Chip | 1 |
| Typical Forward Voltage | 1.17 V |
| Maximum Collector Current | 50 mA |
| Maximum Collector Emitter Voltage | 30 V |
| Maximum Forward Voltage | 1.5 V |
| Minimum Isolation Voltage | 5250 Vrms |
| Maximum Collector Emitter Saturation Voltage | 400 mV |
| Maximum Input Current | 60 mA |
| Maximum Power Dissipation | 250 mW |
| Operating Temperature | -40 to 100 °C |
| Standard Package | Bulk |
| Standard Package | Rail / Tube |
| Product Category | Transistor Output Optocouplers |
| RoHS | RoHS Compliant |
| Isolation Voltage | 7500 Vrms |
| Maximum Forward Diode Voltage | 1.5 V |
| Maximum Input Diode Current | 60 mA |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 40 C |
| Package / Case | PDIP-6 |
| Series | H11AA4 |
| Packaging | Bulk |
| Output Device | NPN Phototransistor |
| Factory Pack Quantity | 1000 |
| Package Width | 6.6(Max) |
| Mounting | Through Hole |
| Minimum Isolation Voltage | 5250 |
| PCB | 6 |
| Maximum Power Dissipation | 250 |
| Maximum Collector Emitter Saturation Voltage | 400 |
| EU RoHS | Compliant |
| Maximum Input Current | 60 |
| Pin Count | 6 |
| Minimum Operating Temperature | -40 |
| Supplier Package | PDIP |
| Standard Package Name | PDIP |
| Maximum Operating Temperature | 100 |
| Maximum Forward Voltage | 1.5 |
| Package Length | 8.89(Max) |
| Maximum Collector Emitter Voltage | 30 |
| Package Height | 5.08(Max) |
| Maximum Collector Current | 50 |
| Lead Shape | Through Hole |
| Current Transfer Ratio (Min) | 100% @ ±10mA |
| Mounting Type | Through Hole |
| Vce Saturation (Max) | 400mV |
| Voltage - Output | 30V |
| Number of Channels | 1 |
| Current - DC Forward (If) | 100mA |
| Voltage - Isolation | 7500Vpk |
| Package/Case | 6-DIP (0.300", 7.62mm) |
| rohs | Lead free / RoHS Compliant |
| Unit Weight | 0.030159 oz |
| 輸出設備 | 光電晶體管 |
| 最大正向電壓 | 1.5V |
| 安裝類型 | 通孔安裝 |
| 隔離電壓 | 7500 V 交流 |
| 封裝類型 | MDIP |
| 針數目 | 6 |
| 最大輸入電流 | 60 mA |
| 輸入電流類型 | 交流 |
| 最大電流傳輸比 | 100% |
| 通道數目 | 1 |
| If - Forward Current | 60 mA |
| Vf - Forward Voltage | 1.5 V |
| Brand | Fairchild Semiconductor |
| Pd - Power Dissipation | 250 mW |
| Height | 5.08 mm |
| Length | 8.89 mm |
| Collector-Emitter Breakdown Voltage | 30 V |
| Configuration | 1 Channel |
