H5CX-AD-N
Time Delay Relay Omron H5CX-AD-N, 0.001 s to 9999 h Screw SPDT
廠商型號:
H5CX-AD-N
芯天下內部編號:
232-H5CX-AD-N
生產廠商:
Omron
描述:
Time Delay Relay Omron H5CX-AD-N, 0.001 s to 9999 h Screw SPDT
產品類別:
Automation & Control Gear|Timers & Counters|Time Delay Relays
客戶編號:

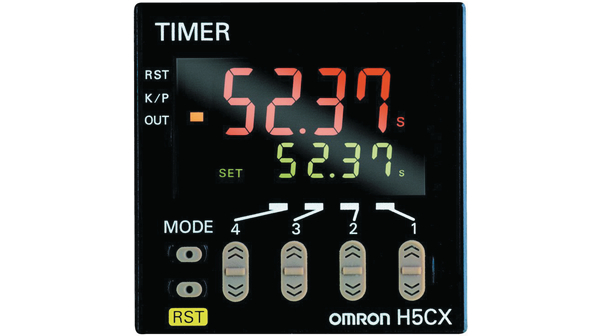

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Depth | 63.7mm |
| Length | 48mm |
| Maximum Operating Temperature | +55°C |
| Mode of Operation | Cumulative, Interval, ON/OFF Duty Adjustable Flicker, Power ON Delay I, Power ON Delay II Repeat Cycle I, Repeat Cycle II, Signal OFF Delay, Signal ON Delay I, Signal ON Delay II, Stopwatch |
| Mounting Type | Panel |
| Number of Contacts | 1 |
| Number of Timer Functions | Multi Function |
| Power Supply | External |
| Supply Voltage | 12 → 24 V ac/dc |
| Switch Configuration | SPDT |
| Terminal Type | Screw |
| Time Increment | Hours, Seconds |
| Time Range | 0.001 s → 9999 h |
| Width | 48mm |
| Module type | timer |
| Mounting hole diameter | 45 x 45mm |
| Multiplicity | 1 |
| Electrical connection | screw terminals |
| Output type | SPDT |
| Gross weight | 0.16 kg |
| Operating temperature | -10...55°C |
| Number of pins | 9 |
| Associated items | Y92A-48, Y92A-48F1 |
| Mounting | on panel |
| number of operation modes | 12 |
| Counting range | 0,01s...9999h |
| Sealing | IP66 |
| The additional control inputs | RESET, START, gate |
| Counter operation modes | cumulative, delayed switching off, delayed switching on, symmetrical cyclical operation pause first, ON for the set interval, with the control contact S |
| Display | LCD, with a backlit, LCD, with a backlit |
| Output 1 electrical parameters | 250VAC/5A |
| Supply voltage | 12...24V DC |
| No of time ranges | 10 |
| Description | Relay output |
| Dimensions W x H x D | 48 x 48 x 65 mm |
| Protection rating (housing) | IP 66 front panel |
| Switching current | 5 A@ 250 VAC |
| Switch function | Multifunction |
| Front panel cutout, W x H | 45 x 45 mm |
| Number of Functions | 15 |
| Operating voltage | 24 VAC, 12...24 VDC |
| Time-setting range | 0.001 s...9999 h |
| Termination type | Screw Connection |
| Output contact | 1 change-over (CO) |
| 觸點數目 | 1 |
| 系列 | H5CX |
| 電源電壓 | 12 → 24 V（交流/直流） |
| 最高工作溫度 | +55°C |
| 安裝類型 | 面板安裝 |
| 電源 | 外部 |
| 計時器功能數目 | 多功能 |
| 時間范圍 | 0.001 s → 9999 h |
| CAD 繪圖 | 3D CAD 模型 |
| 開關配置 | SPDT |
| 深度 | 63.7mm |
| 長度 | 48mm |
| 寬度 | 48mm |
| 操作模式 | 累加、間隔、接通/關閉負載可調閃爍、電源接通延時 I、電源接通延時 II 重復周期 I、重復周期 II、信號關閉延時、信號接通延時 I、信號接通延時 II、秒表 |
| 接端類型 | 螺釘 |
| 時間增量 | 小時，秒 |
