H7CX-A4-N

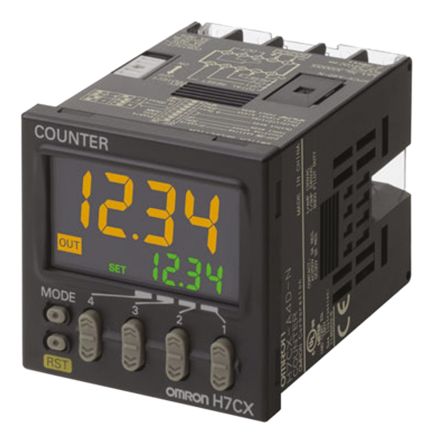

Counter Omron H7CX-A4-N 100 to 240V ac
廠商型號:
H7CX-A4-N
芯天下內部編號:
232-H7CX-A4-N
生產廠商:
Omron
描述:
Counter Omron H7CX-A4-N 100 to 240V ac
產品類別:
Automation & Control Gear|Timers & Counters|Counters
客戶編號:
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Connection Type | Screw |
| Count Direction | Bi-Directional |
| Count Mode | Seconds |
| Digit Height | 10 mm |
| Display Range | -99999 → 999999 |
| Display Type | LCD |
| Input Type | Voltage |
| Maximum Count Frequency | 5kHz |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -25°C |
| Mounting Type | Panel |
| Number of Digits | 4 |
| Output / Interface | Contact |
| Reset Method | Automatic, Manual |
| Supply Voltage | 100 → 240 V ac |
| Weight | 130g |
| Counter kind | progressive/reversing, with preset value |
| Resetting method | automatic, electrical, finger activated |
| Mounting | on panel |
| Display 2 height | 6mm |
| Display height 1 | 12mm |
| Electrical input 1 parameters | low level: 0...2V, high level: 4,5...30V |
| Electrical input 2 parameters | low level: 0...2V, high level: 4,5...30V |
| IN2 max counting frequency | 5kHz |
| Output 1 type | SPDT |
| Operating temperature | -10...55°C |
| Input 1 type | NPN, PNP, contact |
| Mounting hole diameter | 45 x 45mm |
| Multiplicity | 1 |
| Electrical connection | screw terminals |
| Gross weight | 0.19 kg |
| Display | LCD, LCD |
| Output 1 electrical parameters | 250VAC/3A |
| Counter type | electronical |
| Input 2 type | NPN, PNP, contact |
| 1 display colour | green/red/orange (switch.) |
| Output 2 electrical parameters | 12VDC/100mA |
| Power supply | 100...240VAC 50/60Hz, external |
| Counting range | -999...9999 |
| 2 display colour | green |
| Type of counted signal | pulses |
| Output 2 type | supplying |
| Max IN1 counting frequency | 5kHz |
| 輸入類型 | 電壓 |
| 計數模式 | 秒 |
| 復位方法 | 自動，手動 |
| 數字?jǐn)?shù)目 | 4 |
| 顯示器類型 | LCD |
| 最高工作溫度 | +85°C |
| 重量 | 130g |
| 電源電壓 | 100 → 240 V 交流 |
| 安裝類型 | 面板安裝 |
| 最低工作溫度 | -25°C |
| 測量范圍 | -99999 → 999999 |
| 連接類型 | 螺釘 |
| 計數方向 | 雙向 |
| 輸出 / 接口 | 觸點 |
| 系列 | H7CX |
| 顯示范圍 | -99999 → 999999 |
| 最大計數頻率 | 5kHz |
| 數字高度 | 10mm |
