HEF4046BT
廠商型號:
HEF4046BT
芯天下內部編號:
229-HEF4046BT
生產廠商:
NXP
描述:
產品類別:
Standard and Specialty Logic|Specialty Logic|Logic Misc
客戶編號:
規格書:
查看PDF

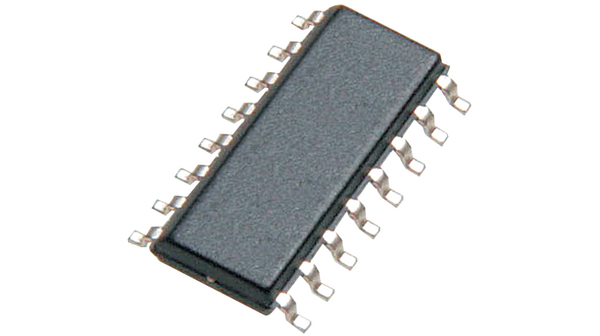

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Surface Mount |
| Operating Temp Range | -40C to 85C |
| Package Type | SO |
| Packaging | Bulk |
| Pin Count | 16 |
| Rad Hardened | No |
| PLL Type | :VCO |
| Frequency | :7MHz |
| Supply Current | :750μA |
| Supply Voltage Min | :3V |
| Supply Voltage Max | :15V |
| Digital IC Case Style | :SOIC |
| No. of Pins | :16 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :4046 |
| IC Generic Number | :4046 |
| Logic Function Number | :4046 |
| Logic IC Base Number | :4046 |
| Logic IC Family | :4000 CMOS |
| Logic IC Function | :Phase Locked Loop |
| No. of Gates | :1 |
| Operating Temperature Range | :-40°C to +70°C |
| Supply Voltage Range | :3V to 15V |
| Termination Type | :SMD |
| Weight (kg) | 0.00014 |
| Tariff No. | 85423990 |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|
| HEF4046BP | Misc | None | 查看詳情 |
| HEF4046BP | NXP | 查看詳情 | |
| HEF4046BP,652 | nxp semiconductors | PLL Single 16-Pin PDIP Bulk | 查看詳情 |
| HEF4046BP652 | NXP | 查看詳情 | |
| HEF4046BPN | NXP Semiconductors | PLL Single 0.5MHz to 2.7MHz 16-Pin PDIP Bulk | 查看詳情 |
| HEF4046BT,652 | nxp semiconductors | PLL Single 16-Pin SO Bulk | 查看詳情 |
| HEF4046BT,653 | nxp semiconductors | PLL Single 16-Pin SO T/R | 查看詳情 |
| HEF4046BT.652 | nxp semiconductors | PLL Single 16-Pin SO Bulk | 查看詳情 |
| HEF4046BT652 | NXP | 查看詳情 | |
| HEF4046BTD | NXP Semiconductors | Phase Locked Loops - PLL PHASE LOCKED LOOP W/VCO | 查看詳情 |
| HEF4046BTD-T | NXP Semiconductors | PLL Single 0.5MHz to 2.7MHz 16-Pin SO T/R | 查看詳情 |
