HLMP-Q106
LED Uni-Color Red 654nm 2-Pin T/R
廠商型號:
HLMP-Q106
芯天下內部編號:
9-HLMP-Q106
生產廠商:
avago technologies
描述:
LED Uni-Color Red 654nm 2-Pin T/R
產品類別:
Lighting|LEDs

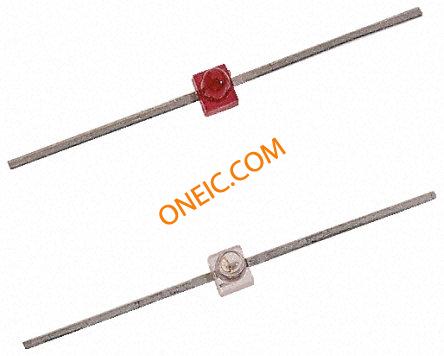

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Pin Count | 2 |
| Type | Uni-Color |
| Number of LEDs | 1 |
| Dominant Wavelength/Color Temperature | 644 nm |
| Peak Wavelength | 654 nm |
| Color | Red |
| Lens Appearance | Colorless Non Diffused |
| Lens Shape Type | Circular |
| Viewing Angle | 15 ° |
| Mounting Orientation | Top Mount |
| Mounting | Through Hole |
| Standard Package | Bulk |
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| Illumination Color | Red |
| Luminous Intensity | 400 mcd |
| Wavelength/Color Temperature | 644 nm |
| Lens Color/Style | Untinted Non-Diffused |
| Forward Current | 20 mA |
| Forward Voltage | 1.9 V |
| LED Size | 2.34 mm x 2.21 mm x 2.92 mm |
| Packaging | Bulk |
| Lens Dimensions | 1.91 mm |
| Lens Shape | Dome |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 55 C |
| Factory Pack Quantity | 1000 |
| Dominant Wavelength | 644 |
| Maximum Forward Current | 50 |
| Package Width | 2.34(Max) |
| PCB | 2 |
| Maximum Power Dissipation | 100 |
| Viewing Angle | 15 |
| Reverse Voltage | 5 |
| EU RoHS | Compliant |
| Maximum Forward Voltage per Color | 1.9 |
| Peak Wavelength | 654 |
| Minimum Operating Temperature | -55 |
| LED Material | GaAlAs |
| Lens Dimensions | 1.91x1.91x1.4 |
| Maximum Operating Temperature | 100 |
| Package Length | 2.34(Max) |
| Package Height | 2.92(Max) |
| High Brightness | No |
| Voltage - Forward (Vf) Typ | 1.9V |
| Mounting Type | Through Hole, Axial |
| Lens Style/Size | Round, 1.78mm |
| Wavelength - Dominant | 644nm |
| Size / Dimension | 2.09mm L x 2.21mm W |
| Millicandela Rating | 400mcd |
| Wavelength - Peak | 654nm |
| Current - Test | 20mA |
| Height | 2.92mm |
| Lens Type | Diffused, Tinted |
| Package/Case | Axial, Flat Leads |
| rohs | Lead free / RoHS Compliant |
| Dominant Wavelength | 644 nm |
| LED Colours | Red |
| Number of Pins | 2 |
| Package Size | 1.65 Dia. x 2.92mm |
| Mounting Style | Through Hole |
| Bulb Size | :1.9mm |
| LED Colour | :Red |
| Forward Current If | :20mA |
| LED Mounting | :Through Hole |
| Wavelength Typ | :654nm |
| MSL | :MSL 2A - 4 weeks |
| SVHC | :No SVHC (20-Jun-2013) |
| Current If Luminous Intensity | :20mA |
| External Depth | :2.2mm |
| External Length / Height | :2.15mm |
| External Width | :2.2mm |
| Forward Current If Max | :20mA |
| Forward Voltage VF Max | :1.9V |
| LED Type | :Standard |
| Lead Cross-section Depth | :0.5mm |
| Lead Cross-section Width | :0.2mm |
| Lead Length | :11mm |
| Luminous Intensity Typ | :530mcd |
| No. of Pins | :2 |
| Operating Temperature Max | :100°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Range | :-55°C to +100°C |
| Opto Case Style | :Subminiature |
| PIV Max | :5V |
| Peak Forward Current | :30mA |
| Voltage Vf Typ | :1.9V |
| Weight (kg) | 0.0002 |
| Tariff No. | 85414010 |
