HS16-3SN
Switch Rotary 3P12T 12 Flatted Shaft Solder Lug 12A 250VAC
廠商型號:
HS16-3SN
芯天下內部編號:
240-HS16-3SN
生產廠商:
NKK Switches
描述:
Switch Rotary 3P12T 12 Flatted Shaft Solder Lug 12A 250VAC
產品類別:
Switches|Rotary Switches|HS

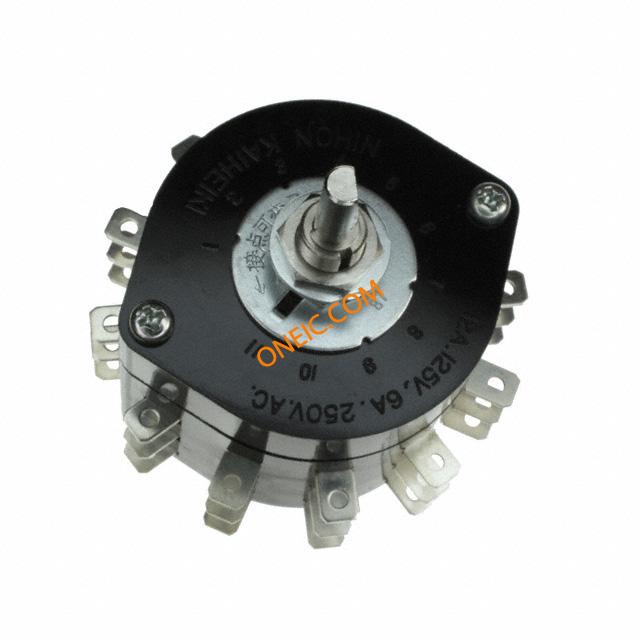

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Actuator Style | Flatted Shaft |
| Electrical Life | 7500 |
| Product Length | 65 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Product Height | 80.5 |
| Product Depth | 71 |
| Mounting | Panel Mount |
| Body Orientation | Straight |
| Maximum AC Voltage Rating | 250 |
| Maximum Current Rating | 12@125VAC |
| Pole Throw Configuration | 3P12T |
| Terminal Type | Solder Lug |
| Actuator Material | Brass |
| Minimum Operating Temperature | -10 |
| Angle of Throw | 30 |
| Mechanical Life | 15000 |
| Number of Positions | 12 |
| Contact Material | Phosphor Bronze |
| Orientation | Vertical |
| Mounting Type | Panel Mount |
| Number of Decks | 3 |
| Angle of Throw | 30° |
| Termination Style | Solder Lug |
| Number of Poles per Deck | 1 |
| Actuator Type | Flatted (6mm dia) |
| Standard Package | 1 |
| Contact Rating @ Voltage | 12A @ 125VAC |
| Circuit per Deck | SP11T |
| rohs | Lead free / RoHS Compliant |
| No. of Poles | :3 |
| No. of Switch Positions | :11 |
| Contact Current AC Max | :12A |
| Contact Voltage AC Max | :250V |
| Weight (kg) | 0 |
| Tariff No. | 85365080 |
