HSMP-381B-TR1G
Diode PIN Attenuator 100V 3-Pin SOT-323 T/R
廠商型號:
HSMP-381B-TR1G
芯天下內部編號:
9-HSMP-381B-TR1G
生產廠商:
avago technologies
描述:
Diode PIN Attenuator 100V 3-Pin SOT-323 T/R
產品類別:
Discrete|Diode|PIN

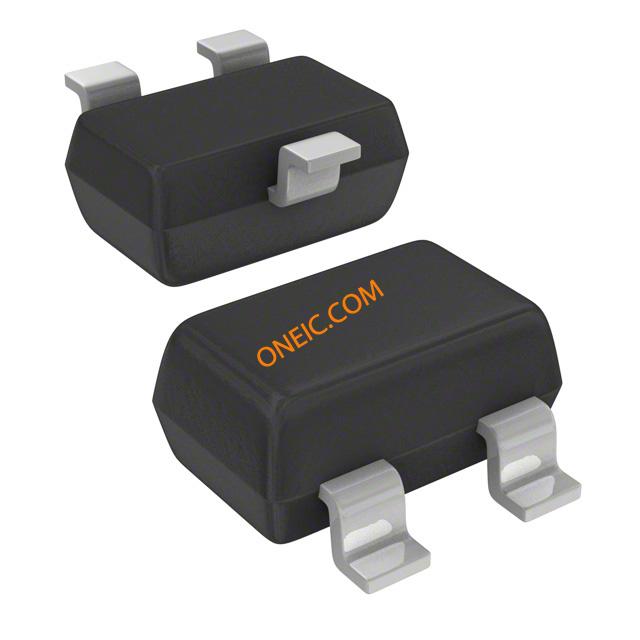

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 3SOT-323 |
| Configuration | Single |
| Maximum Reverse Voltage | 100 V |
| Maximum Diode Capacitance | 0.35@50V pF |
| Typical Carrier Life Time | 1.5 us |
| Mounting | Surface Mount |
| Type | Attenuator |
| Standard Package | Tape & Reel |
| Supplier Package | SOT-323 |
| Standard Package Name | SC-70 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 150 |
| Maximum Series Resistance @ Maximum IF | 3@100mA |
| Package Height | 1(Max) |
| Maximum Reverse Voltage | 100 |
| Typical Carrier Life Time | 1.5 |
| Packaging | Tape and Reel |
| Maximum Diode Capacitance | 0.35@50V |
| Maximum Series Resistance @ Minimum IF | 70@1mA |
| Package Width | 1.4(Max) |
| PCB | 3 |
| Package Length | 2.25(Max) |
| Minimum Operating Temperature | -65 |
| Pin Count | 3 |
| Lead Shape | Gull-wing |
| Current - Max | 1A |
| Capacitance @ Vr, F | 0.35pF @ 50V, 1MHz |
| Resistance @ If, F | 3 Ohm @ 100mA, 100MHz |
| Supplier Device Package | SOT-323 |
| Voltage - Peak Reverse (Max) | 100V |
| Package / Case | SC-70, SOT-323 |
| Diode Type | PIN - Single |
| rohs | Lead free / RoHS Compliant |
| Mounting Style | SMD/SMT |
| Product Category | PIN Diodes |
| Carrier Life | 1.5 us |
| Forward Current | 1 A |
| Maximum Operating Temperature | + 150 C |
| Reverse Voltage | 50 V |
| Recovery Time | 300 ns |
| Maximum Series Resistance @ Minimum IF | 53 Ohms at 1 mA |
| Minimum Operating Temperature | - 65 C |
| Factory Pack Quantity | 3000 |
| Maximum Series Resistance @ Maximum IF | 3 Ohms at 100 mA |
| RoHS | RoHS Compliant |
| If - Forward Current | 1 A |
| Vr - Reverse Voltage | 50 V |
| Brand | Broadcom / Avago |
| Termination Style | SMD/SMT |
| Height | 1 mm |
| Length | 2.25 mm |
