ICE2PCS01G
Power Factor Correction CONTRLR 0.45mA 50KHz to 315KHz 8-Pin DSO
廠商型號:
ICE2PCS01G
芯天下內部編號:
173-ICE2PCS01G
生產廠商:
infineon technologies
描述:
Power Factor Correction CONTRLR 0.45mA 50KHz to 315KHz 8-Pin DSO
產品類別:
Power Management|PWM Controllers|Power Factor Correction

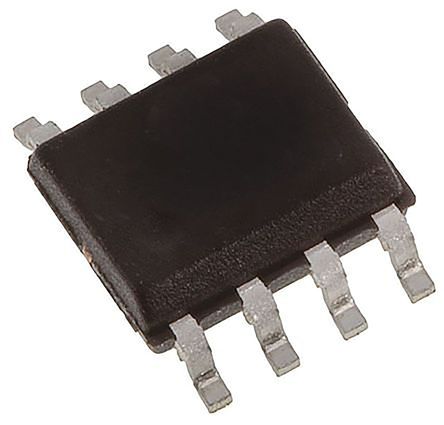

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8DSO |
| Type | Power Factor Correction Controller |
| Switching Frequency | 50 to 315 KHz |
| Start-up Supply Current | 0.45 mA |
| Operating Temperature | -40 to 125 °C |
| Mounting | Surface Mount |
| Standard Package | Tape & Reel |
| Standard Package | Rail / Tube |
| Matchcode | ICE2PCS01G |
| T(A) min | -40°C |
| Unit Pack | 2500 |
| Standard Leadtime | 14 weeks |
| MOQ | 2500 |
| T(A) max | 125°C |
| I(out) | 0.022A |
| Automotive | NO |
| f(s) | 285000Hz |
| V(in) max | 25V |
| Leadfree Defin. | RoHS-conform |
| Mounting Type | Surface Mount |
| Frequency - Switching | 50kHz ~ 315kHz |
| Supplier Device Package | PG-DSO-8 |
| Packaging | Tape & Reel (TR) |
| Voltage - Supply | 11 V ~ 25 V |
| Mode | Continuous Conduction (CCM) |
| Current - Startup | 450μA |
| Package/Case | 8-SOIC (0.154", 3.90mm Width) |
| rohs | Lead free / RoHS Compliant |
| Series | * |
| Other Names | ICE2PCS01GCT |
| Factory Pack Quantity | 2500 |
| Product Category | Power Factor Correction - PFC |
| Mounting Style | SMD/SMT |
| Minimum Operating Temperature | - 40 C |
| Package / Case | DSO-8 |
| Part # Aliases | ICE2PCS01GXUMA1 SP000717682 |
| Maximum Operating Temperature | + 125 C |
| RoHS | RoHS Compliant |
| UVLO | :11V |
| Supply Voltage Min | :11.5V |
| Supply Voltage Max | :25V |
| Startup Current | :450μA |
| Operating Supply Current | :15mA |
| Digital IC Case Style | :SOIC |
| No. of Pins | :8 |
| Duty Cycle (%) | :95% |
| Frequency | :285Hz |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| MSL | :- |
| Operating Temperature Range | :-40°C to +150°C |
| Supply Voltage Range | :11.5V to 25V |
| Weight (kg) | 0.000175 |
| Tariff No. | 85423190 |
