ICE40HX1K-BLINK-EVN
プログラマブルロジック IC 開発ツール iCEblink40-HX1K Evaluation Kit
廠商型號:
ICE40HX1K-BLINK-EVN
芯天下內部編號:
224-ICE40HX1K-BLINK-EVN
生產廠商:
Lattice

描述:

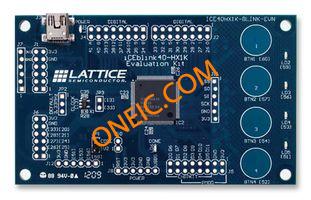

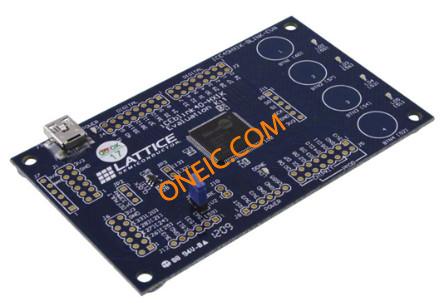

プログラマブルロジック IC 開発ツール iCEblink40-HX1K Evaluation Kit
產品類別:
Programmers, Development Systems|Evaluation Boards - Embedded - Complex Logic (FPGA, CPLD)|HX
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
參數類型 | 參數值 |
---|---|
EU RoHS | Supplier Unconfirmed |
Technology | FPGA |
Additional Information | http://www.latticesemi.com/documents/EB73.pdf http://www.latticesemi.com/documents/QS015.pdf |
Type | FPGA |
For Use With/Related Products | iCE40HX mobileFPGA? |
Contents | Board, Cable |
Standard Package | 1 |
rohs | Lead free / RoHS Compliant |
Classification | Development Kit |
Kit Contains | Documentation, iCEblink40 LP1K Board, USB Mini Cable |
Operating Supply Voltage | 3.3 V |
Factory Pack Quantity | 1 |
Product | Evaluation Kits |
Series | iCE40HX1K Dev Tool |
Tool Is For Evaluation Of | ICE40HX1K |
Interface Type | SPI |
RoHS | RoHS Compliant |
Silicon Manufacturer | :Lattice Semiconductor |
Core Architecture | :FPGA |
Core Sub-Architecture | :FPGA |
Silicon Core Number | :iCE40HX1K |
Silicon Family Name | :iCE40 |
No. of Bits | :- |
Kit Contents | :Evaluation Board for iCE40HX1K FPGA, USB Mini Cable, User Guide |
Features | :USB Programming, Debugging, Virtual I/O Functions & Supported by Lattice iCEcube2 Design Software |
Weight (kg) | 0.212 |
Tariff No. | 85423190 |
Standard Pack Qty | 1 |
