ICL7107CM44Z
ADC Single Dual Slope 3sps 3 1/2Digit LED 44-Pin MQFP
廠商型號:
ICL7107CM44Z
芯天下內部編號:
177-ICL7107CM44Z
生產廠商:
intersil
描述:
ADC Single Dual Slope 3sps 3 1/2Digit LED 44-Pin MQFP
產品類別:
Data Conversion|ADC

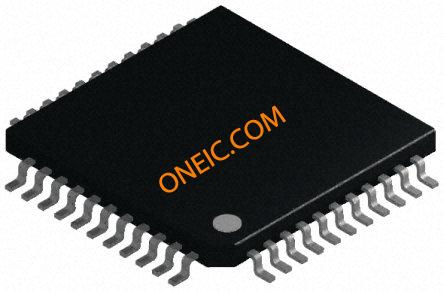

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 44MQFP |
| Resolution | 3 1/2 Digit |
| Sampling Rate | 3 sps |
| Number of Analog Inputs | 1 |
| Architecture | Dual Slope |
| Differential Input | Yes |
| Digital Interface Type | LED |
| Input Type | Voltage |
| Polarity of Input Voltage | Unipolar |
| Standard Package | Trays |
| Matchcode | ICL7107CM44Z |
| T(A) min | 0°C |
| Unit Pack | 192 |
| Standard Leadtime | 14 weeks |
| MOQ | 192 |
| T(A) max | 70°C |
| Automotive | NO |
| V(in) max | 6V |
| Type | DC/DC |
| V(out) | 6V |
| Leadfree Defin. | RoHS-conform |
| Display Type | LED |
| Mounting Type | Surface Mount |
| Digits or Characters | A/D 3.5 Digits |
| Supplier Device Package | 44-MQFP (10x10) |
| Packaging | Tube |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Package / Case | 44-QFP |
| Configuration | 7 Segment |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 10.12 x 10.1 x 2.1mm |
| Height | 2.1mm |
| Input Signal Type | Differential |
| Integral Nonlinearity Error | ±1Counts |
| Length | 10.12mm |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Number of ADCs | 1 |
| Package Type | MQFP |
| Pin Count | 44 |
| Typical Dual Supply Voltage | ±5V |
| Width | 10.1mm |
| Conversion Rate | 3 S/s |
| Voltage Reference | Internal, External |
| Number of Channels | 1 |
| SNR | No |
| Number of Converters | 1 |
| RoHS | RoHS Compliant |
| Interface Type | LED |
| No. of Digits | :3.5 |
| No. of Segments | :3 |
| Driver Case Style | :MQFP |
| No. of Pins | :44 |
| Supply Voltage Max | :5V |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :7107 |
| Meter Display Type | :LED / LCD |
| Module Configuration | :CMOS |
| No. Segments | :3 |
| No. of Digits / Alpha | :3-1/2 |
| Operating Temperature Range | :0°C to +70°C |
| Supply Current | :1pA |
| Supply Voltage Range | :± 5V |
| Weight (kg) | 0.001 |
| Tariff No. | 85423990 |
| Case | MQFP44 |
| Mounting | SMD |
| Integrated circuit type | driver |
| Gross weight | 4.37 g |
| Output voltage | 5.2V |
| Number of channels | 1 |
| Supply voltage | 4.75...5.25V DC |
| Multiplicity | 1 |
| Kind of integrated circuit | display controller |
| Collective package [pcs] | 96 |
| spg | 96 |
