KAP-11DG-24
General Purpose Relays Relay DPDT 10A 24VDC 472Ohm Socket
廠商型號:
KAP-11DG-24
芯天下內部編號:
35-KAP-11DG-24
生產廠商:
TE Connectivity / P&B
描述:
General Purpose Relays Relay DPDT 10A 24VDC 472Ohm Socket
產品類別:
Electromechanical|Relays|General Purpose Relays

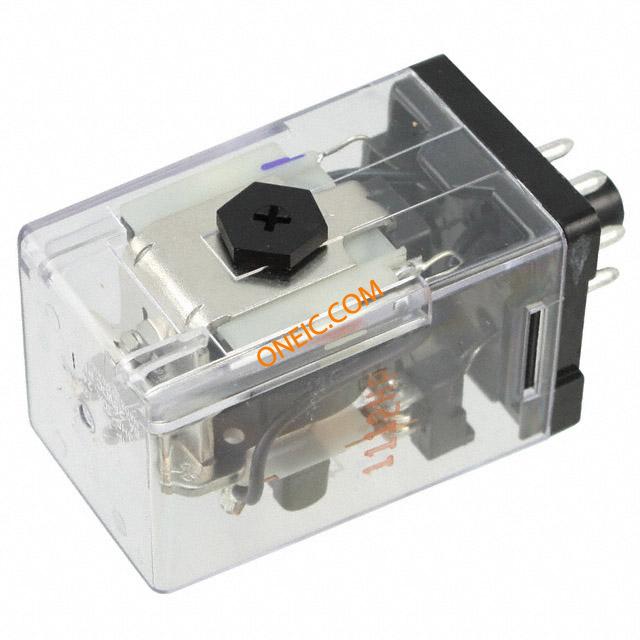

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | General Purpose Relays |
| RoHS | RoHS Compliant |
| Contact Form | 2 Form C (DPDT-BM) |
| Contact Current Rating | 10 A |
| Coil Voltage | 24 VDC |
| Coil Resistance | 472 Ohms |
| Coil Current | 51 mA |
| Switching Voltage | 240 VAC |
| Mounting Style | Socketable |
| Contact Material | Silver Cadium Oxide |
| Coil Type | Non-Latching |
| Contact Termination | Plug In |
| Power Consumption | 1.25 W |
| Series | KAP |
| Factory Pack Quantity | 25 |
| Type | Power Relays |
| Part # Aliases | 9-1393099-7 |
| Industry Aliases | 9-1393099-7, KAP-11DG-24 |
| Subcategory | Electromechanical Relay |
| Lead Time | 84 Days |
| Turn On Voltage (Max) | 18 VDC |
| Features | Insulation - Class B |
| Coil Power | 1.25 W |
| Relay Type | General Purpose |
| Termination Style | Plug In, 8 Pin (Octal) |
| Packaging | Bulk |
| Operating Temperature | -45°C ~ 85°C |
| Contact Rating (Current) | 10A |
| Standard Package | 25 |
| Mounting Type | Socketable |
| rohs | Lead free / RoHS Compliant |
| Product Range | :TE - KAP Series |
| Contact Current | :10A |
| Contact Voltage VAC | :240V |
| Contact Configuration | :DPDT |
| Relay Mounting | :Socket |
| Carry Current | :5A |
| Weight (kg) | 0.077 |
| Tariff No. | 85364110 |
