KNP100JR-73-47R

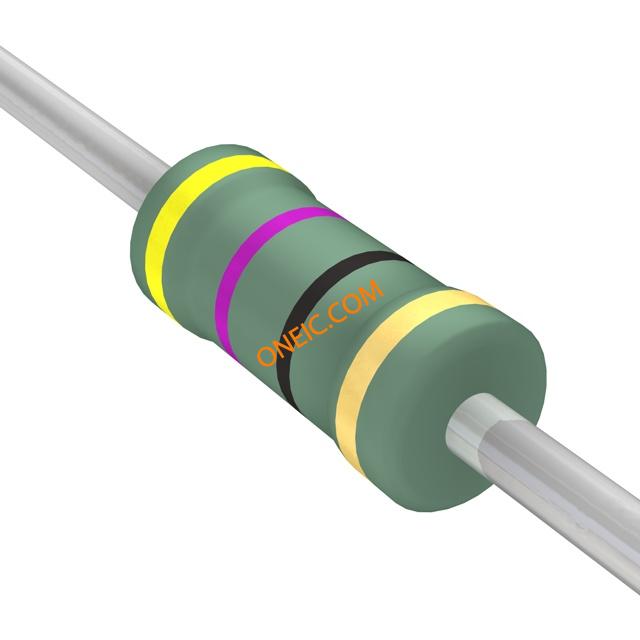

Wirewound Resistors - Through Hole 47ohm 1W 5%
廠商型號:
KNP100JR-73-47R
芯天下內部編號:
536-KNP100JR-73-47R
生產廠商:
Yageo
描述:
Wirewound Resistors - Through Hole 47ohm 1W 5%
產品類別:
Resistors|Through Hole Resistors|KNP
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Temp.coeff. | 300ppm |
| Matchcode | RWA1W47R5% |
| Max.oper.volt. | 400V |
| Width | 4.5mm |
| Unit Pack | 2000 |
| Standard Leadtime | 15 weeks |
| MOQ | 2000 |
| Packaging | REEL |
| Res.tolerance | 5% |
| Length | 11.5mm |
| Max.oper.temp. | 200°C |
| Automotive | AECQ200-D |
| Resistor value | 47R |
| Power rating | 1W |
| Technology | CERAMIC |
| Min.oper.temp. | -40°C |
| Leadfree Defin. | RoHS-conform |
| Resistance (Ohms) | 47 |
| Features | Flame Proof |
| Number of Terminations | 2 |
| Supplier Device Package | Axial |
| Temperature Coefficient | ±300ppm/°C |
| Size / Dimension | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) |
| Power (Watts) | 1W |
| Standard Package | 2,000 |
| Tolerance | ±5% |
| Composition | Wirewound |
| Package/Case | Axial |
| rohs | Lead free / RoHS Compliant |
| Other Names | 47ACCT |
| Case Diameter | 4.5 mm |
| Voltage Rating | 400 V |
| Series | KNP |
| Operating Temperature Range | - 40 C to + 200 C |
| Termination Style | Axial |
| Resistance | 47 Ohms |
| Case Length | 11.5 mm |
| Power Rating | 1 W |
| RoHS | RoHS Compliant By Exemption |
