KSZ8041FTLI
PHY 1-CH 10Mbps/100Mbps 48-Pin TQFP
廠商型號:
KSZ8041FTLI
芯天下內部編號:
255-KSZ8041FTLI
生產廠商:
Micrel Semiconductor
描述:
PHY 1-CH 10Mbps/100Mbps 48-Pin TQFP
產品類別:
Semiconductors|Interface ICs|Physical Layer Transceivers

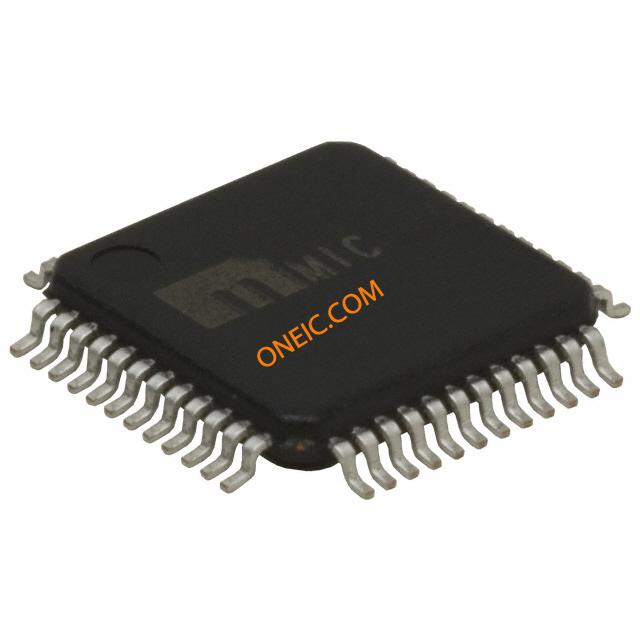

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Typical Operating Supply Voltage | 3.3 |
| Standard Package Name | QFP |
| UTOPIA Level | No |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Maximum Data Rate | 100Mbps |
| Typical Data Rate | 10/100 |
| Minimum Operating Temperature | -40 |
| PHY Line Side Interface | No |
| Power Supply Type | Analog|Digital |
| Number of Channels per Chip | 1 |
| JTAG Support | No |
| Maximum Supply Current | 58.3 |
| Integrated CDR | No |
| Supplier Package | TQFP |
| Maximum Operating Supply Voltage | 3.465 |
| Standard Supported | 10BASE-T|100BASE-FX|100BASE-TX|IE... |
| Minimum Operating Supply Voltage | 3.135 |
| Pin Count | 48 |
| Lead Shape | Gull-wing |
| Protocol | MII, RMII |
| Mounting Type | Surface Mount |
| Standard Package | 250 |
| Duplex | Full |
| Number of Drivers/Receivers | 1/1 |
| Supplier Device Package | 48-TQFP (7x7) |
| Packaging | Tray |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.135 V ~ 3.465 V |
| Type | Transceiver |
| Other Names | 576-3347 |
| Package/Case | 48-TQFP |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 7 x 7 x 1mm |
| Height | 1mm |
| Length | 7mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Package Type | TQFP |
| Typical Data Rate | 10 Mbit/s, 100 Mbit/s |
| Typical Operating Supply Voltage | 3.3 V |
| Width | 7mm |
| Product | Ethernet Transceivers |
| Ethernet Connection Type | 100Base-TX, 10Base-T |
| Maximum Power Dissipation | 180 mW |
| Series | KSZ8041FTL |
| Data Rate | 10 Mbps, 100 Mbps |
| Mounting Style | SMD/SMT |
| Number of Transceivers | 1 |
| Supply Voltage - Max | 3.465 V |
| Package / Case | TQFP-48 |
| Supply Voltage - Min | 3.135 V |
| RoHS | RoHS Compliant |
| Rad Hardened | No |
| Mounting | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 85C |
| Operating Temperature (Min) | -40C |
| Screening Level | Industrial |
| Supply Current | 58300 mA |
| Operating Supply Voltage (Typ) | 3.3 V |
| Operating Supply Voltage (Min) | 3.135 V |
| Operating Supply Voltage (Max) | 3.465 V |
| Ethernet Type | :IEEE 802.3, IEEE 802.3u |
| Supply Voltage Min | :3.135V |
| Supply Voltage Max | :3.465V |
| Digital IC Case Style | :TQFP |
| No. of Pins | :48 |
| IC Interface Type | :MII, RMII, SMII |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Operating Temperature Range | :-40°C to +85°C |
| Supply Voltage Range | :3.135V to 3.465V |
| Weight (kg) | 0.0001 |
| Tariff No. | 85423990 |
