KX14-100K11DE
基板間およびメザニンコネクタ 0.8MM 100P RECPT
廠商型號:
KX14-100K11DE
芯天下內部編號:
185-KX14-100K11DE
生產廠商:
JAE Electronics
描述:
基板間およびメザニンコネクタ 0.8MM 100P RECPT
產品類別:
Connectors, Interconnects|Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine|KX14
客戶編號:
規格書:
查看PDF

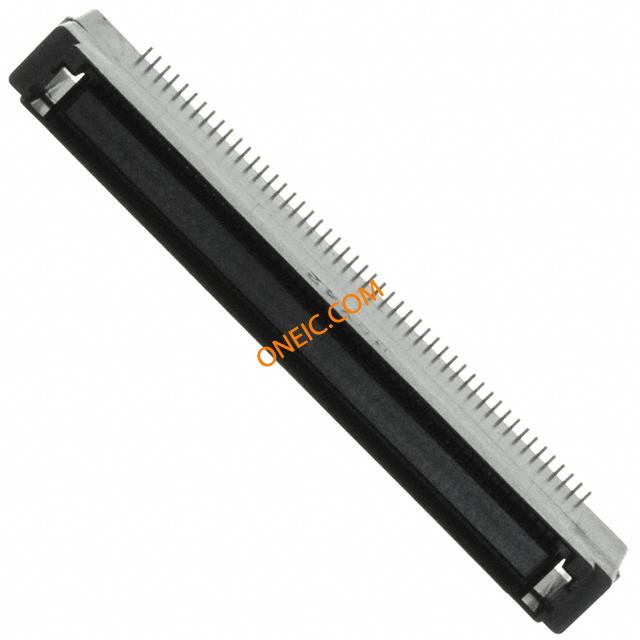

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Number of Positions | 100 |
| Features | Board Guide, Solder Retention |
| Mounting Type | Surface Mount |
| Pitch | 0.031" (0.80mm) |
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Packaging | Tray |
| Number of Rows | 2 |
| Mated Stacking Heights | 13mm, 14mm, 15mm |
| Standard Package | 80 |
| Contact Finish Thickness | 3.9μin (0.10μm) |
| Other Names | 670-1226 |
| Factory Pack Quantity | 1 |
| Mounting Angle | Straight |
| Product Category | Board to Board & Mezzanine Connectors |
| Current Rating | 500 mA |
| Series | KX14 / KX15 |
| Termination Style | SMD |
| Stack Height | 11 mm |
| Number of Positions / Contacts | 100 |
| Contact Plating | Gold |
| Product Type | Receptacles |
| RoHS | RoHS Compliant |
| Contact Material | Copper Alloy |
| Angle | Straight |
| Brand/Series | KX14Series |
| Color | Black |
| ContactPlating | GoldoverNickel |
| Current,Rating | 0.5A |
| Length,Overall | 49.4mm |
| Length,Pin | 0.5mm |
| Material,Contact | CopperAlloy |
| Material,Housing | LCP |
| MountingHoleSize | 0.9" |
| NumberofContacts | 100 |
| NumberofRows | 2 |
| PinSpacing | 0.8mm |
| PrimaryType | BoardtoBoard |
| Temperature,Operating | -40to+85°C |
| Termination | SMT |
| Type | PCBSocket |
| Voltage,Rating | 200/300VAC/VDC |
| rohs | RoHS Compliant Part |
