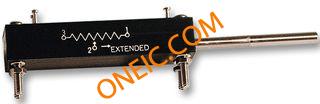

LCP12Y-100-5K
Precision Potentiometers 5K 100mm Linear Ball Ends
廠商型號:
LCP12Y-100-5K
芯天下內部編號:
579-LCP12Y-100-5K
生產廠商:
ETI Systems
描述:
Precision Potentiometers 5K 100mm Linear Ball Ends
產品類別:
Automation & Control Gear|Sensors & Transducers|Linear Transducers
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting Style | Servo |
| Product | Linear Motion Precision Potentiometer |
| Product Category | Precision Potentiometers |
| Termination Style | Turret |
| Element Type | Conductive Plastic |
| Resistance | 5 kOhms |
| Shaft Type | Round / Plain |
| Packaging | Bulk |
| Shaft Diameter | 0.125 in |
| Series | LCP12 |
| Power Rating | 1.2 W |
| Tolerance | 20 % |
| RoHS | RoHS Compliant |
| Track Resistance | :5kohm |
| Track Taper | :Linear |
| Resistance Tolerance | :± 20% |
| Temperature Coefficient | :± 400ppm/°C |
| Adjustment Type | :Linear |
| Linearity, + | :0.5% |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-30°C |
| Operating Temperature Range | :-30°C to +105°C |
| Resistor Element Material | :Conductive Plastic |
| Temperature Coeff. + | :400ppm/°C |
| Temperature Coeff. - | :400ppm/°C |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Weight (kg) | 0.04 |
| Tariff No. | 85334010 |
